Question: Question 3 (5 Marks): Turning is performed on a work material with shear strength of 250 MPa. The following conditions are used: v = 3.0

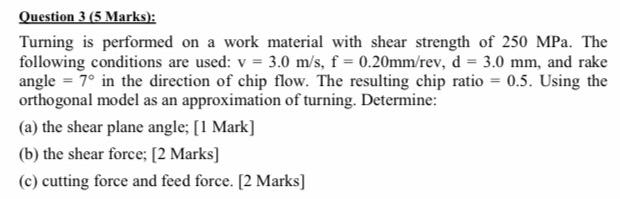

Question 3 (5 Marks): Turning is performed on a work material with shear strength of 250 MPa. The following conditions are used: v = 3.0 m/s, f = 0.20mm/rev, d = 3.0 mm, and rake angle = 7 in the direction of chip flow. The resulting chip ratio = 0.5. Using the orthogonal model as an approximation of turning. Determine: (a) the shear plane angle; [1 Mark] (b) the shear force; [2 Marks] (c) cutting force and feed force. [2 Marks)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
