Question: Question 3 : Determine the angle at which the force F is minimum for the block shown in Figure 2 to be at the verge

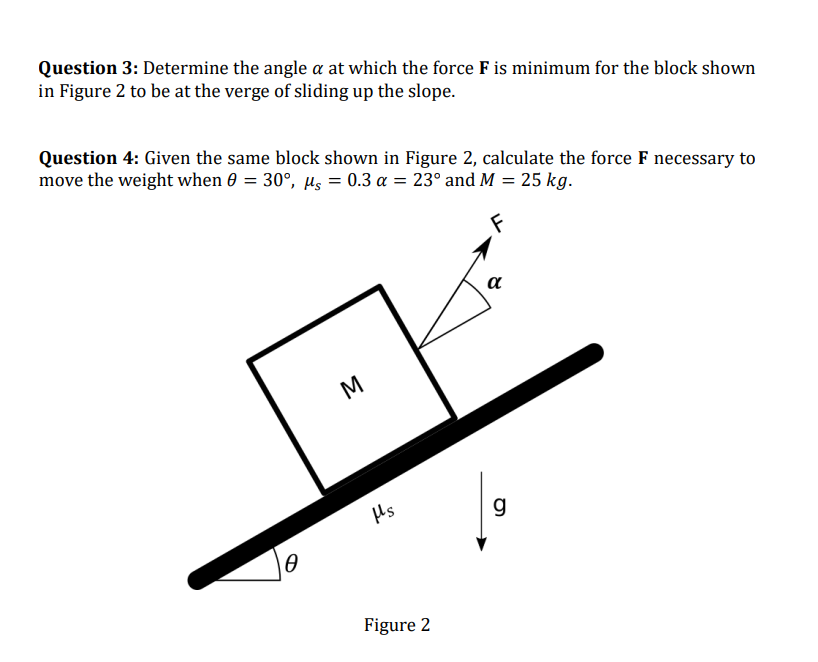

Question 3: Determine the angle at which the force F is minimum for the block shown
in Figure 2 to be at the verge of sliding up the slope.
Question 4: Given the same block shown in Figure 2, calculate the force F necessary to
move the weight when =30,s=0.3=23 and M=25kg.
Figure 2
 Question 3: Determine the angle at which the force F is
