Question 3

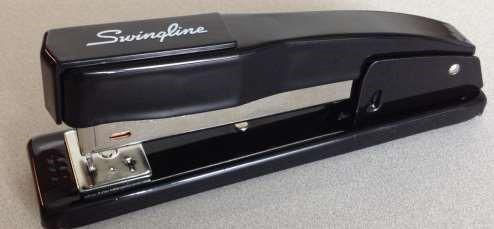

Figure 3 (a) represents a stapler assembly. There are 13 parts in the existing design of the stapler. With the implementation of DFMA guidelines the design of the stapler has been simplified to become only 7 parts (Figure 3(b)). Discuss the changes that has been made in order to improve the design and relates the changes with DFMA guidelines.

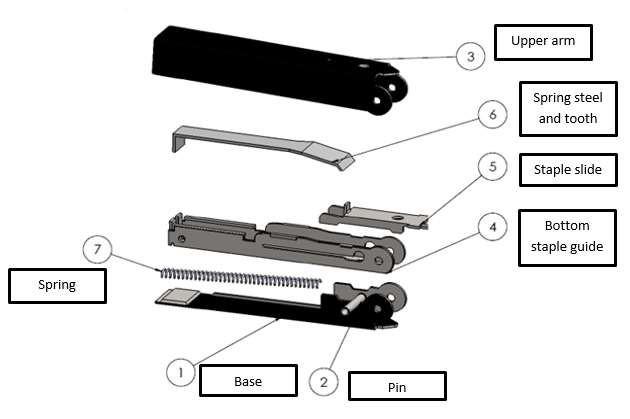

Figure 3 (b) New

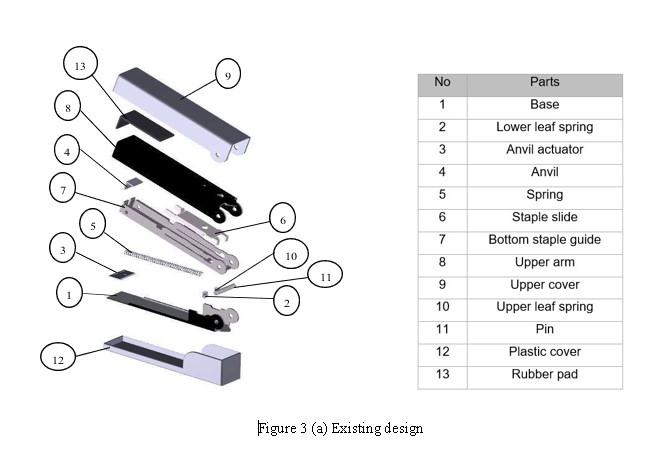

Swingline 13 No 1 2 2 72 3 4 5 6 Parts Base Lower leaf spring Anvil actuator Anvil Spring Staple slide Bottom staple guide Upper arm Upper cover Upper leaf spring Pin Plastic cover Rubber pad 7 SONG 10 8 11 9 10 11 12 12 13 Figure 3 (a) Existing design Upper arm 3 Spring steel and tooth 5 Staple slide Bottom staple guide 7 Spring Base 2 Pin
