Question: QUESTION 3 : For the beam and loading shown, consider section n - n and determine ( a ) the largest shearing stress in that

QUESTION 3:

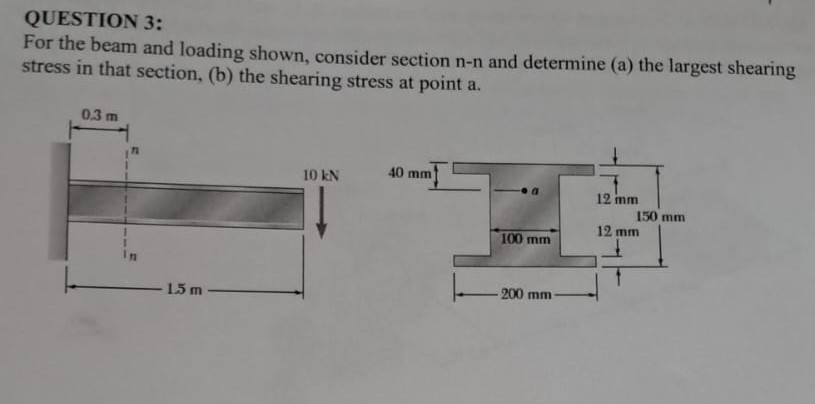

For the beam and loading shown, consider section n-n and determine (a) the largest shearing
stress in that section, (b) the shearing stress at point a.
QUESTION 3 : For the beam and loading shown,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

! Required information For the beam and loading shown, consider section n - n . Given: P = 1 5 5 k N . Determine the shearing stress at point a . The shearing stress at point a is MPa .

Q:

For the beam and loading shown, consider section n - n . Given: P = 1 7 0 k N . Determine the shearing stress at point A . The shearing stress at point a is ? ? MPa.

Q:

Required information For the beam and loading shown, consider section \ ( n - n \ ) . Given: \ ( P = 1 6 0 \ mathrm { kN } \ ) . Determine the shearing stress at point \ ( a \ ) . The shearing stress...

Q:

1 PROBLEM 6 . 1 2 For the beam and loading shown, consider in . section n - n and determine the shearing stress at point a . REMEMBER THE SLIDING SUR ACE IS " t " , THUS THERE WILL BE TWO SURFACES...

Q:

! Required information For the beam and loading shown, consider section n - n . Given: P = 1 5 5 k N . Determine the largest shearing stress in that section. The largest shearing stress is MPa .

Q:

Problem 3 : For the beam and loading shown, consider section n - n and determine ( a ) the largest shearing stress in that section and ( b ) the shearing stress at point a . ( 2 5 points )

Q:

For the beam and loading shown, cosider section and determine (a) the largest shearing stress in (b) shearing stress at point a: the that section.

Q:

PROBLEM 6 . 1 0 For the beam and loading shown, consider section n - n and determine ( a ) the shearing stress at the N . A . of that section ( b ) the shearing stress at point a .

Q:

Question 4 For the beam and loading shown, consider section n - n and determine the shearing stress at ( a ) point a , ( b ) point b .

Q:

Required information For the beam and loading shown, consider section n-n. Given: P = 15 kips. P 20 kips 2 ft 2 ft 2 ft 2 ft Determine the largest shearing stress in that section. The largest...

Q:
