Question: Question 3 - Group A Determine the support reactions for the structure shown. m Support A - Pin; Support B - Roller. a = 1

Question 3- Group A

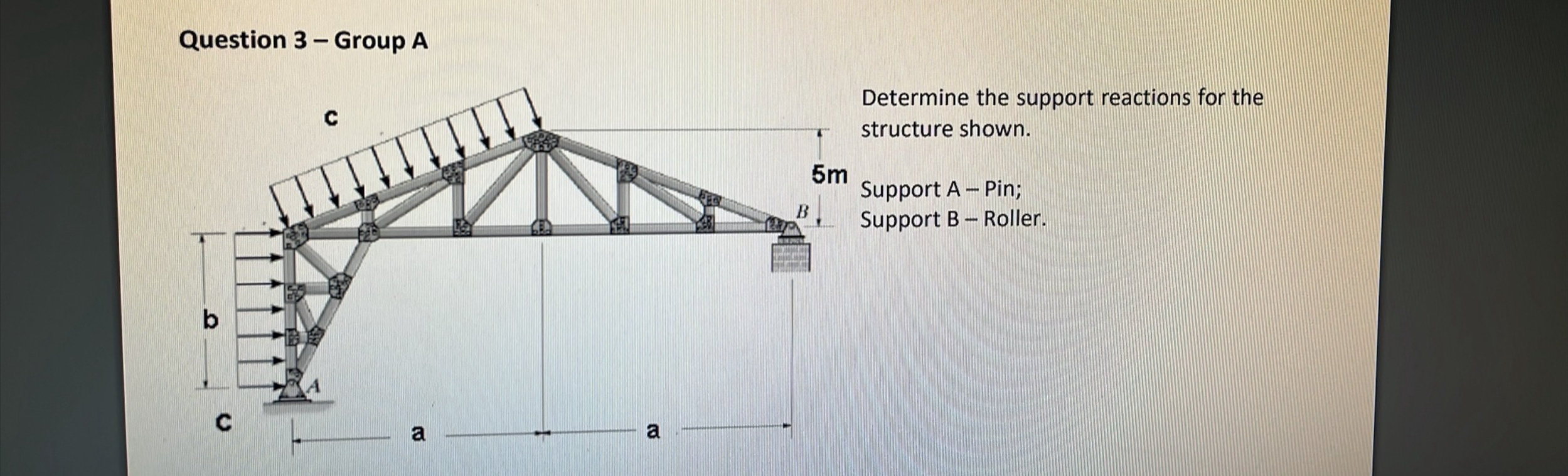

Determine the support reactions for the structure shown.
m Support A - Pin; Support B-Roller. a =11, b =4.5, c =9.
Question 3 - Group A Determine the support

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
