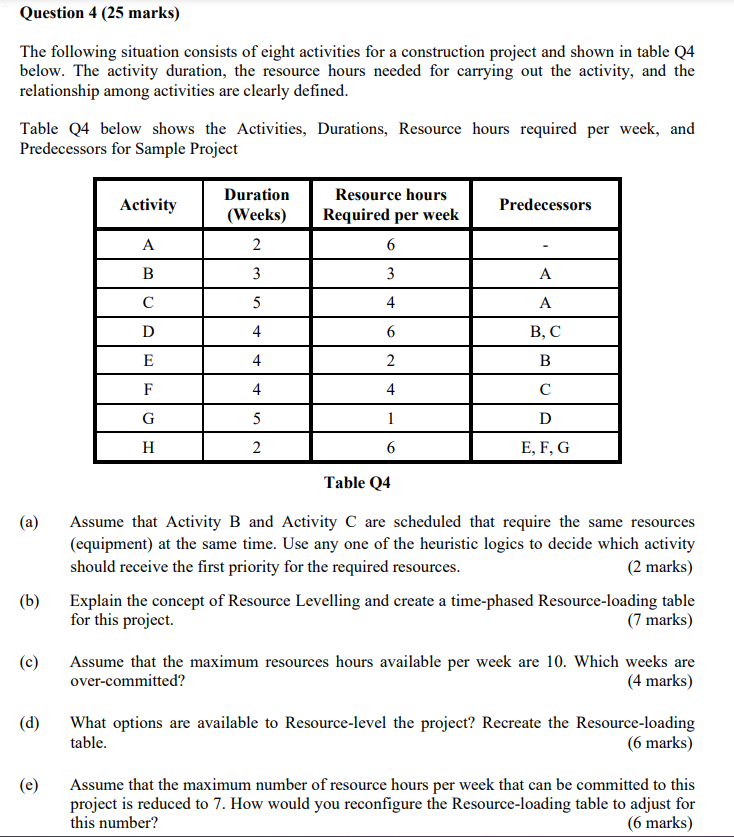

Question $4(25$ marks$)$

The following situation consists of eight activities for a construction project and shown in table Q$4$ below. The activity duration, the resource hours needed for carrying out the activity, and the relationship among activities are clearly defined.

Table Q$4$ below shows the Activities, Durations, Resource hours required per week, and Predecessors for Sample Project

$\backslash$begin$\{$tabular$\}\{|$c$|$c$|$c$|$c$|\}$

$\backslash$hline Activity & $\backslash$begin$\{$tabular$\}\{$c$\}$

Duration $\backslash \backslash$

$($Weeks$)$

$\backslash$end$\{$tabular$\}$ & $\backslash$begin$\{$tabular$\}\{$c$\}$

Resource hours $\backslash \backslash$

Required per week

$\backslash$end$\{$tabular$\}$ & Predecessors $\backslash \backslash$

$\backslash$hline A & $2$ & $6$ & $-\backslash \backslash$

$\backslash$hline B & $3$ & $3$ & A $\backslash \backslash$

$\backslash$hline C & $5$ & $4$ & A $\backslash \backslash$

$\backslash$hline D & $4$ & $6$ & B$,$ C $\backslash \backslash$

$\backslash$hline E & $4$ & $2$ & B $\backslash \backslash$

$\backslash$hline F & $4$ & $4$ & C $\backslash \backslash$

$\backslash$hline G & $5$ & $1$ & D $\backslash \backslash$

$\backslash$hline H & $2$ & $6$ & E$,$ F$,$ G $\backslash \backslash$

$\backslash$hline

$\backslash$end$\{$tabular$\}$

Table Q$4$

$($a$)$ Assume that Activity B and Activity C are scheduled that require the same resources $($equipment$)$ at the same time. Use any one of the heuristic logics to decide which activity should receive the first priority for the required resources.

$(2$ marks$)$

$($b$)$ Explain the concept of Resource Levelling and create a time$-$phased Resource$-$loading table for this project.

$(7$ marks$)$

$($c$)$ Assume that the maximum resources hours available per week are $10.$ Which weeks are over$-$committed?

$(4$ marks$)$

$($d$)$ What options are available to Resource$-$level the project? Recreate the Resource$-$loading table.

$(6$ marks$)$

$($e$)$ Assume that the maximum number of resource hours per week that can be committed to this project is reduced to $7.$ How would you reconfigure the Resource$-$loading table to adjust for this number?

$(6$ marks$)$
