Question: Question 5: Consider the feedback loop below. Write a MATLAB program which will plot the Nyquist diagram of the open loop system on the s-plane.

Question 5: Consider the feedback loop below. Write a MATLAB program which will plot the Nyquist diagram of the open loop system on the s-plane. Is the elosed loop system stable

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

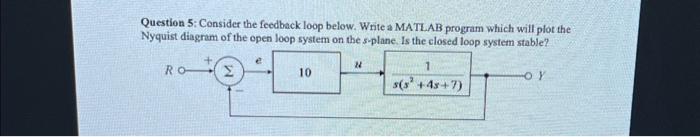

: Consider the feedback loop below. Write a MATLAB program which will plot the Nyquist diagram of the open loop system on the s-plane. Is the closed loop system stable? RO + 10 1 s(s + 4s+7) -OY
