Question: Question 5 . Water is ejected from a 1 6 0 mm pipeline to the atmosphere via a nozzle of 8 0 mm exit diameter

Question 5.

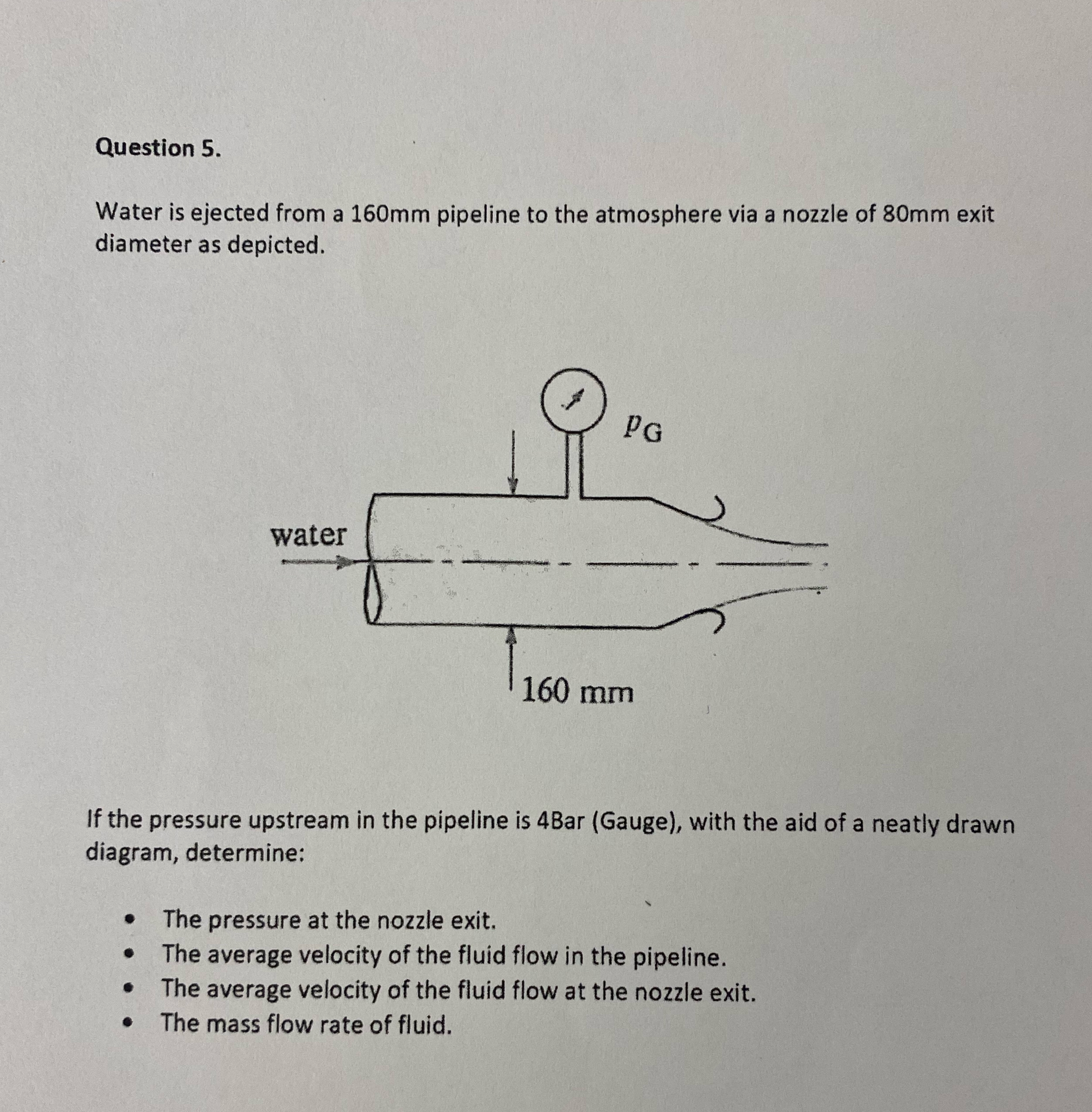

Water is ejected from a 160 mm pipeline to the atmosphere via a nozzle of 80 mm exit diameter as depicted.
If the pressure upstream in the pipeline is 4Bar (Gauge), with the aid of a neatly drawn diagram, determine:
The pressure at the nozzle exit.
The average velocity of the fluid flow in the pipeline.
The average velocity of the fluid flow at the nozzle exit.
The mass flow rate of fluid.
Question 5 . Water is ejected from a 1 6 0 mm

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
