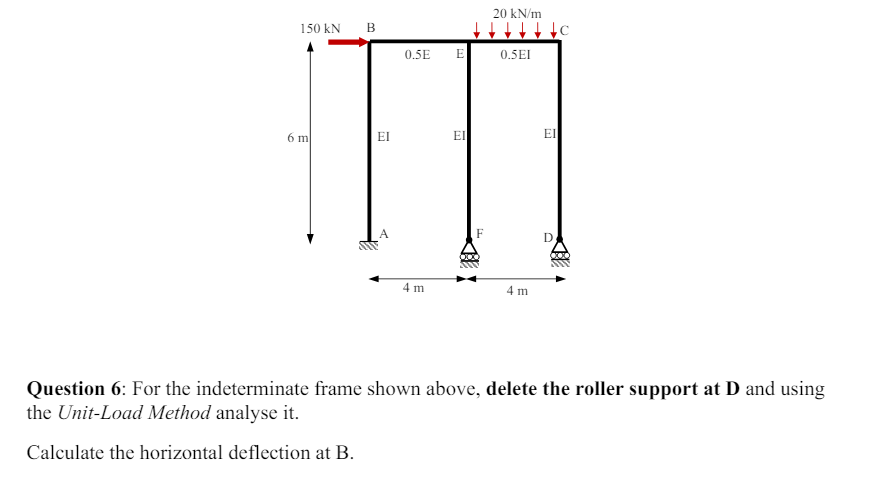

Question: Question 6 : For the indeterminate frame shown above, delete the roller support at D and using the Unit - Load Method analyse it .

Question 6: For the indeterminate frame shown above, delete the roller support at D and using
the Unit-Load Method analyse it.
Calculate the horizontal deflection at B.
Question 6 : For the indeterminate frame shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
