Question: QUESTION 7 Determine the pressure difference between point A and B , for the set up shown in Figure 7 . 1 Figure 7 .

QUESTION 7

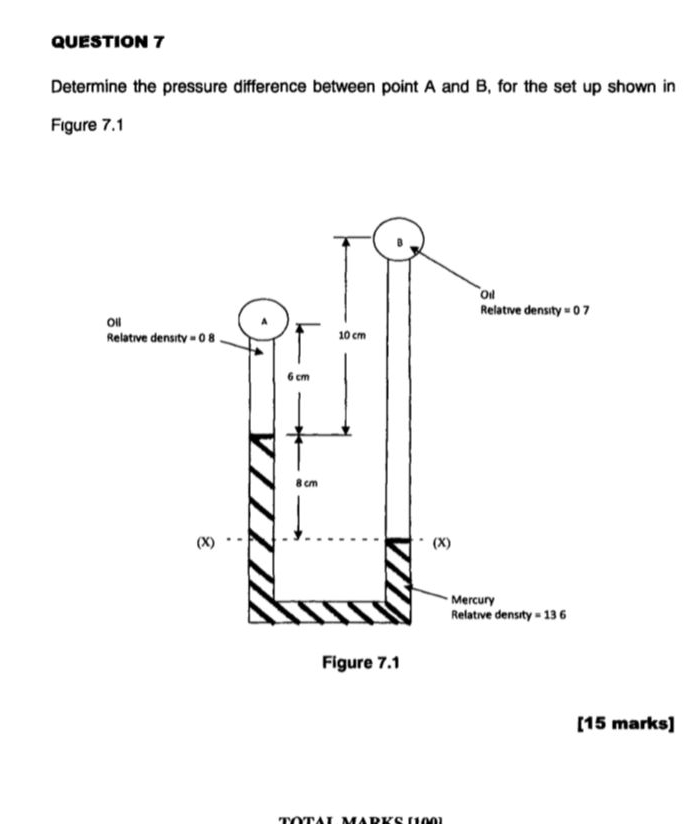

Determine the pressure difference between point A and B, for the set up shown in
Figure 7.1
Figure 7.1
[15 marks]
QUESTION 7 Determine the pressure difference

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
