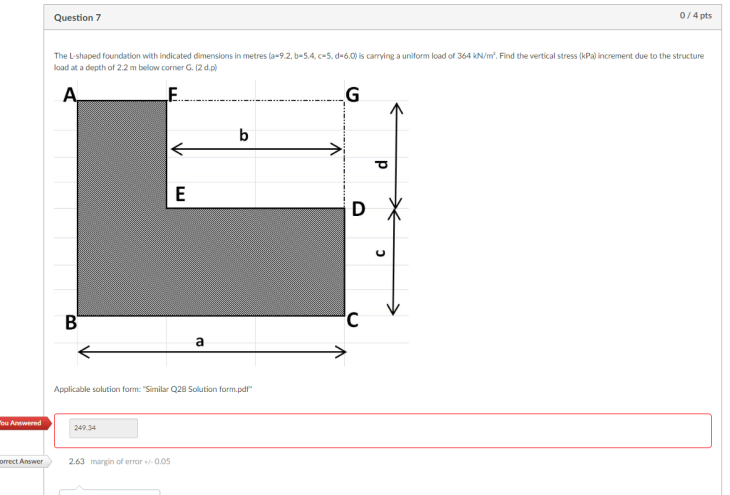

Question $7$

The L $-$shaped foundation with indicated dimensions in metres $(a=9\mathrm{.}2,b=5\mathrm{.}4,c=5,d=6\mathrm{.}0)$ is carrying a uniform load of $364k\frac{N}{m^2}.$ Find the vertical stress $(kPa)$ increment due to the structure

load at a depth of $2\mathrm{.}2$ m below corner G$.(2$ d$.$p$)$

Applicable solution form: "Similar Q$28$ Solution form.pdF$"$
