Question: Question 7 This problem is about replacing the loading system acting on the post shown below by a resultant force and a couple moment acting

Question 7

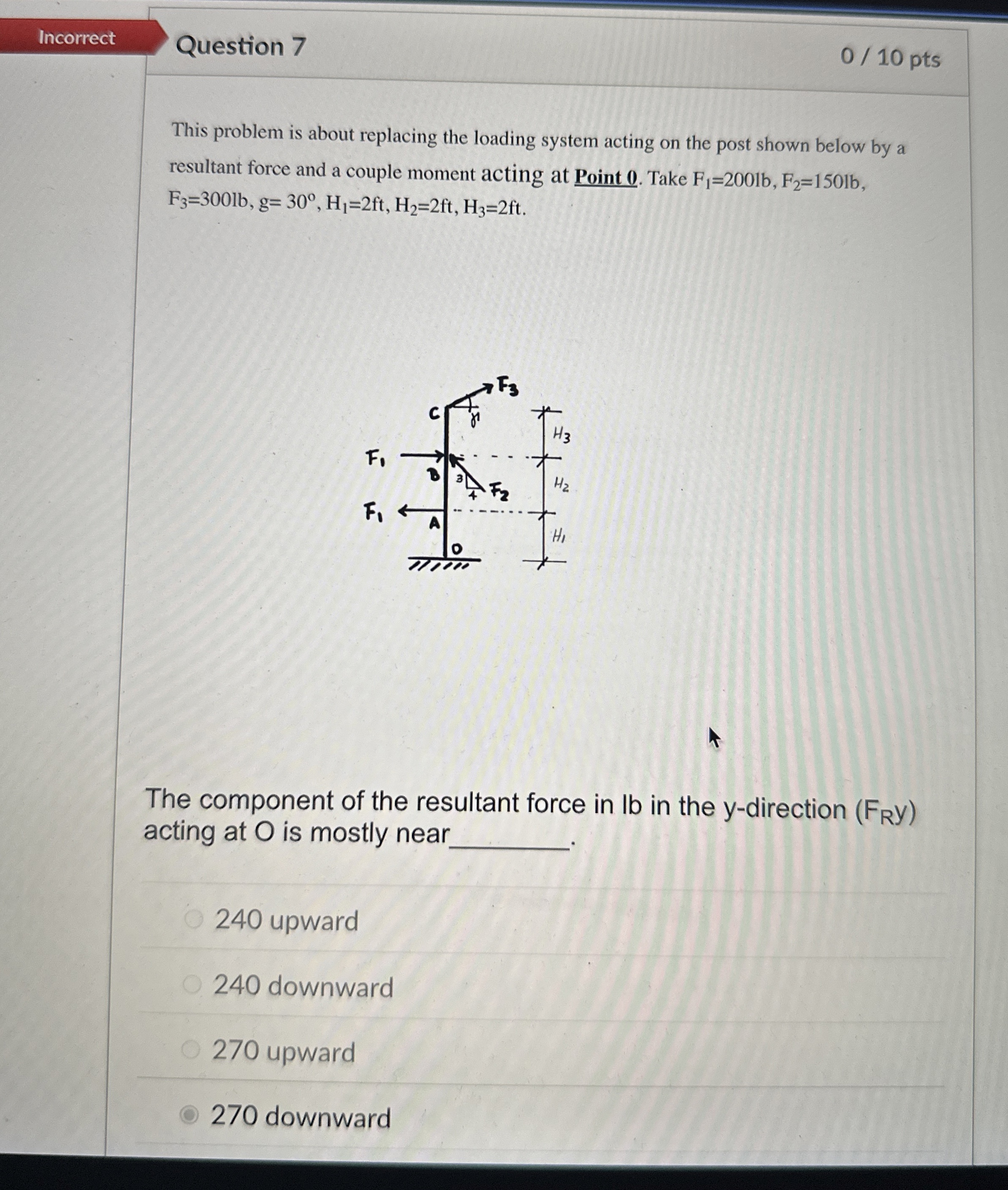

This problem is about replacing the loading system acting on the post shown below by a
resultant force and a couple moment acting at Point 0. Take F1=200lb,F2=150lb,
F3=300lb,g=30,H1=2ft,H2=2ft,H3=2ft.
The component of the resultant force in lb in the y -direction (FRy)
acting at O is mostly neal
240 upward
240 downward
270 upward
270 downward
270 upward and downward are incorrect
Question 7 This problem is about replacing the

Step by Step Solution

There are 3 Steps involved in it
