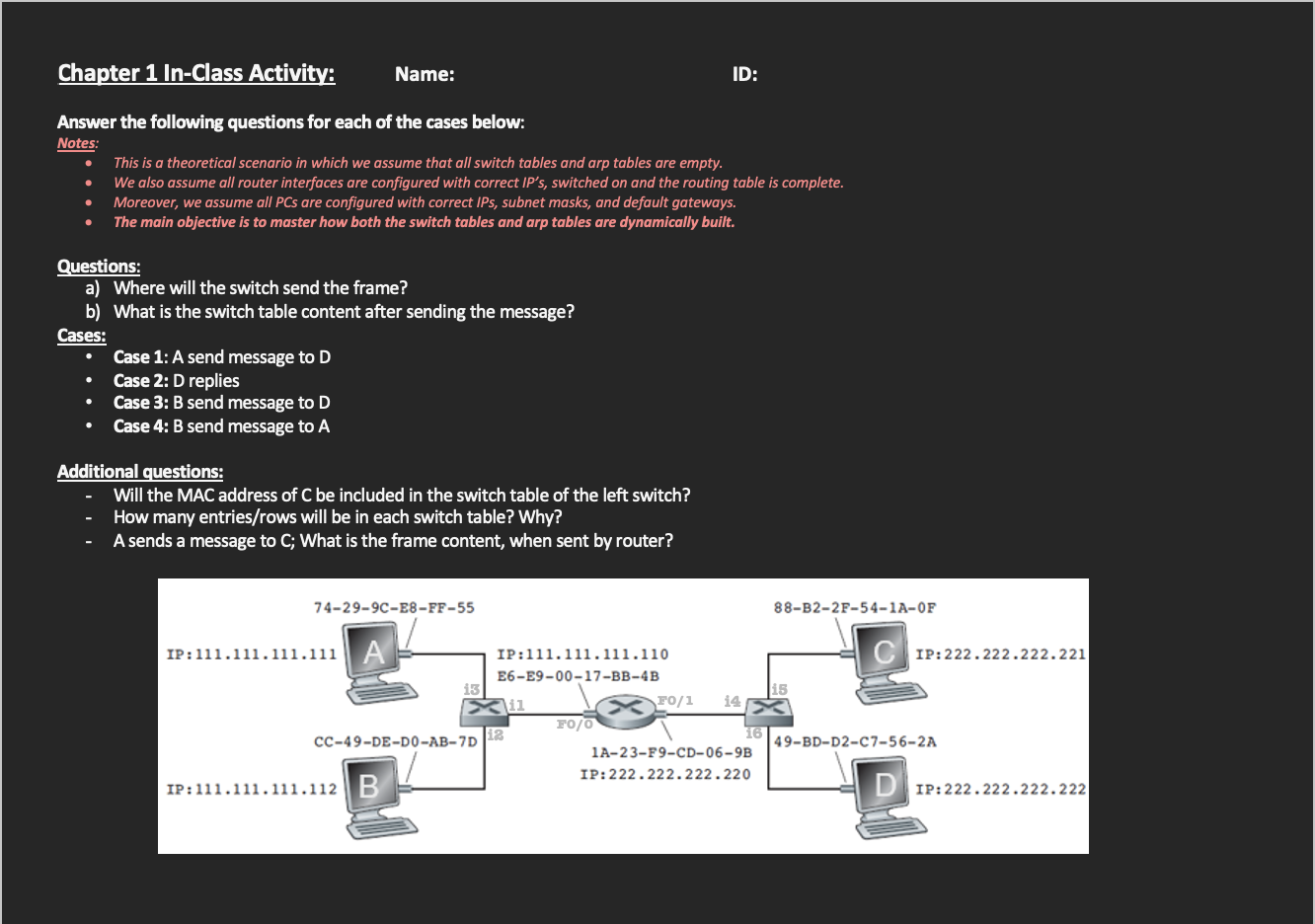

Questions: a) Where will the switch send the frame? b) What is the switch table content after sending the message? Cases: - Case 1: A send message to D - Case 2: D replies - Case 3: B send message to D - Case 4: B send message to A Additional questions: - Will the MAC address of C be included in the switch table of the left switch? - How many entries/rows will be in each switch table? Why? - A sends a message to C; What is the frame content, when sent by router? ANSWERS: (write your answers here in the form of short sentences. You can also use the tables below) Switch 1 (MAC Table) \begin{tabular}{|l|l|l|} \hline# & Port & MAC \\ \hline 1 & & \\ \hline 2 & & \\ \hline 3 & & \\ \hline \end{tabular} Switch 2 (MAC Table) \begin{tabular}{|l|l|l|} \hline \hline & Port & MAC \\ \hline 1 & & \\ \hline 2 & & \\ \hline 3 & & \\ \hline \end{tabular} PC A (ARP Table) \begin{tabular}{|l|l|l|} \hline IP & MAC \\ \hline 1 & & \\ \hline 2 & & \\ \hline \end{tabular} PC B (ARP Table) \begin{tabular}{|l|l|l|} \hline# & IP & MAC \\ \hline 1 & & \\ \hline 2 & & \\ \hline \end{tabular} Detailed Case scenario: (Please write here in your own words description of the sequence of events for any of the above cases.)
