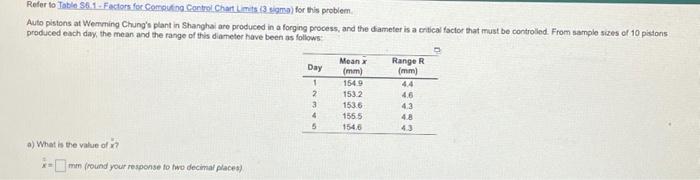

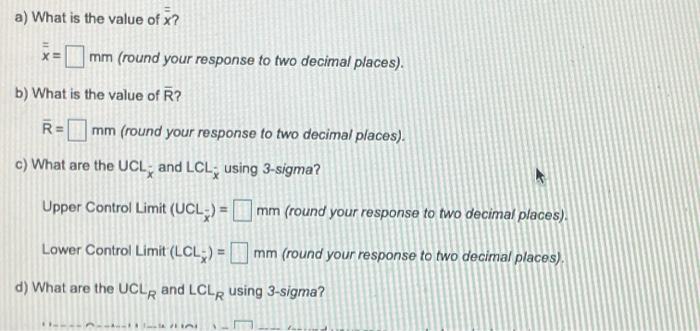

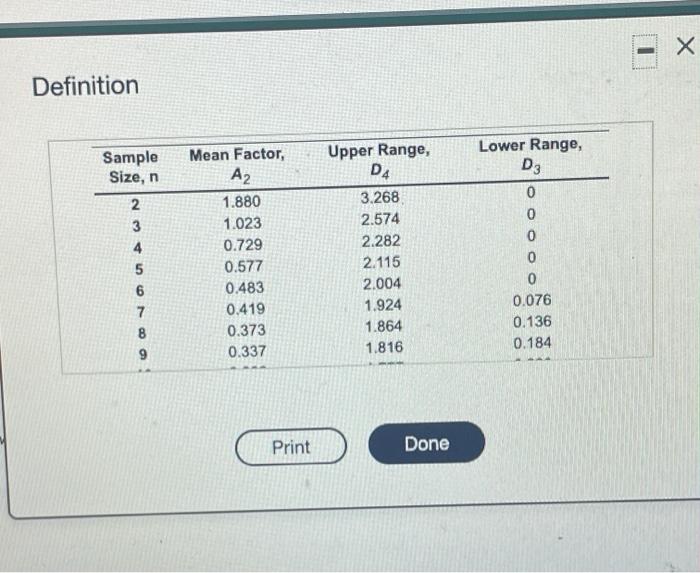

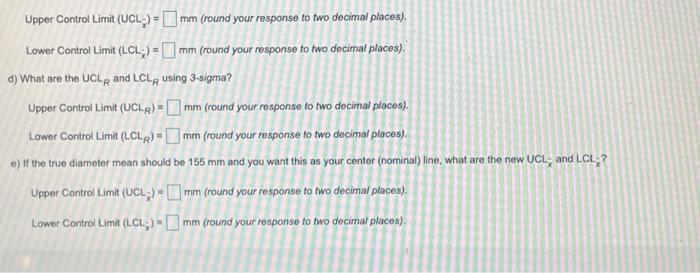

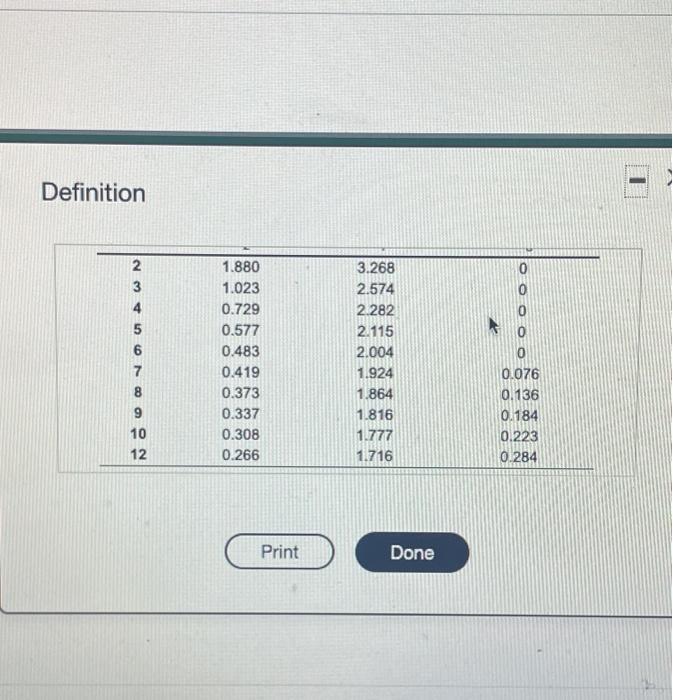

Refer to Table 56.1. Factors for Computing Control Chart Limits (3 some for this problem Auto pistons at Wemming Chung's plant in Shanghai are produced in a forging process, and the diameter is a critical factor that must be controled. From sample sizes of 10 pistons produced each day, the mean and the range of this diameter have been as follows: Day 1 2 3 4 5 Meanx (mm) 1549 1532 153.6 1555 1546 Range R (mm) 44 46 43 48 43 a) What is the value of x mm (round your response to two decimal places) x Definition Sample Size, n 2 3 4 5 6 7 8 9 Mean Factor, Az 1.880 1.023 0.729 0.577 0.483 0.419 0.373 0.337 Upper Range, D4 3.268 2.574 2.282 2.115 2.004 1.924 1.864 1.816 Lower Range, D3 0 0 0 0 0 0.076 0.136 0.184 Print Done Definition 0 2 3 4 5 0 0 0 1.880 1.023 0.729 0.577 0.483 0.419 0.373 0.337 0.308 0.266 3.268 2.574 2.282 2.115 2.004 1.924 1.864 1.816 1.777 1.716 7 8 9 10 12 0.076 0.136 0.184 0.223 0.284 Print Done a) What is the value of x? mm (round your response to two decimal places). b) What is the value of R? R= mm (round your response to two decimal places). 0 c) What are the UCL, and LCL; using 3-sigma? Upper Control Limit (UCLA) = mm (round your response to two decimal places). Lower Control Limit (LCL ) = mm (round your response to two decimal places) d) What are the UCLR and LCLR using 3-sigma? Upper Control Limit (UCL) = mm (round your response to two decimal places). Lower Control Limit (LCL ) = mm (round your response to two decimal places) d) What are the UCLR and LCLR using 3-sigma? Upper Control Limit (UCLA) = mm round your response to two decimal places) Lower Control Limit (LCup) = mm (round your response to two decimal places). a) If the true diameter mean should be 155 mm and you want this as your center (nominal) lino, what are the new UCL, and LCL,? Upper Control Limit (UCL) - mm (round your response to two decimal places), Lower Control Limit (LCL) - mm (round your response to two decimal places)
