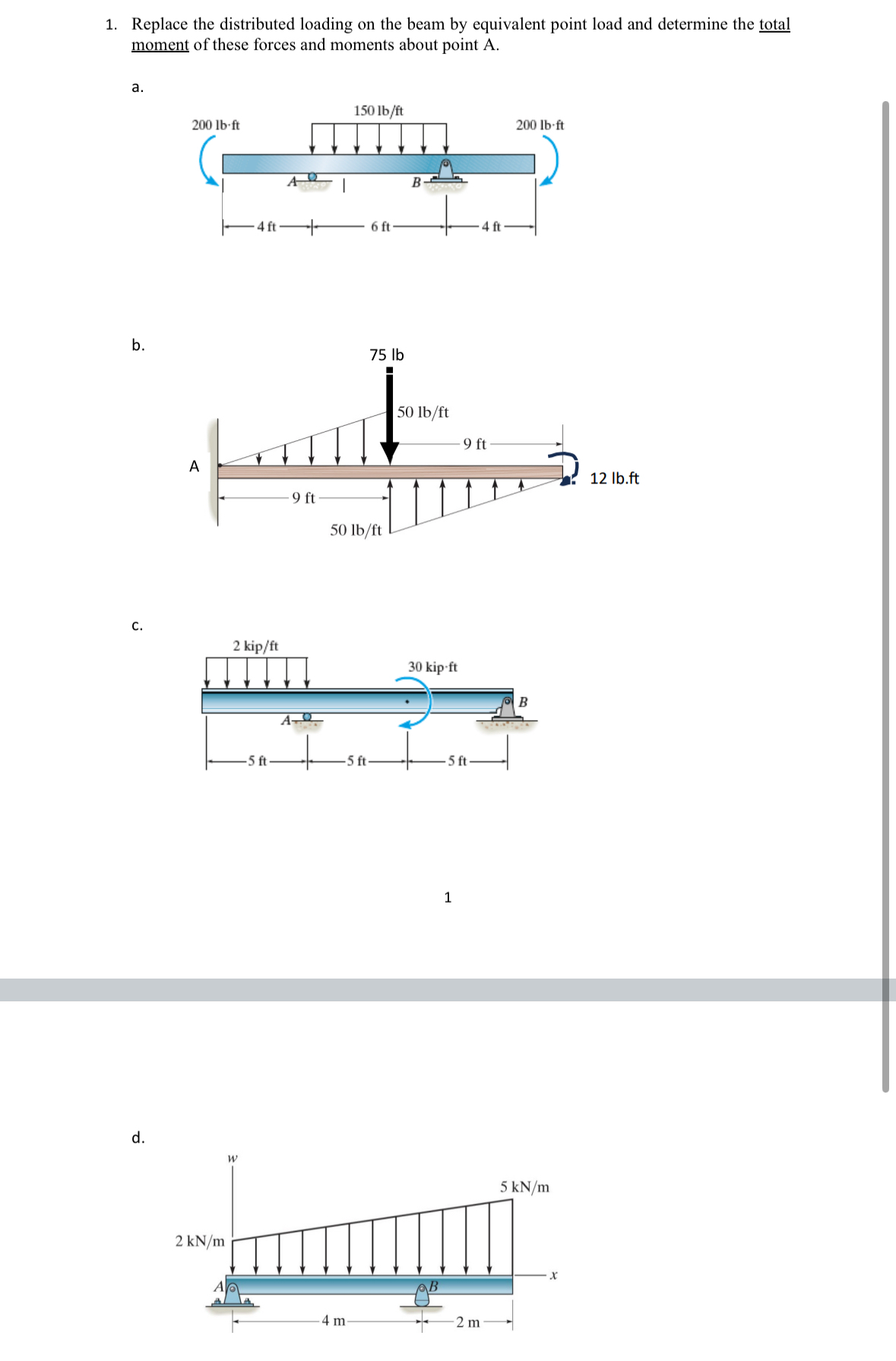

Question: Replace the distributed loading on the beam by equivalent point load and determine the total moment of these forces and moments about point A .

Replace the distributed loading on the beam by equivalent point load and determine the total moment of these forces and moments about point A .
a.
b.
c.
1
d.
Replace the distributed loading on the beam by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
