Question: Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a vertical tine along member A B

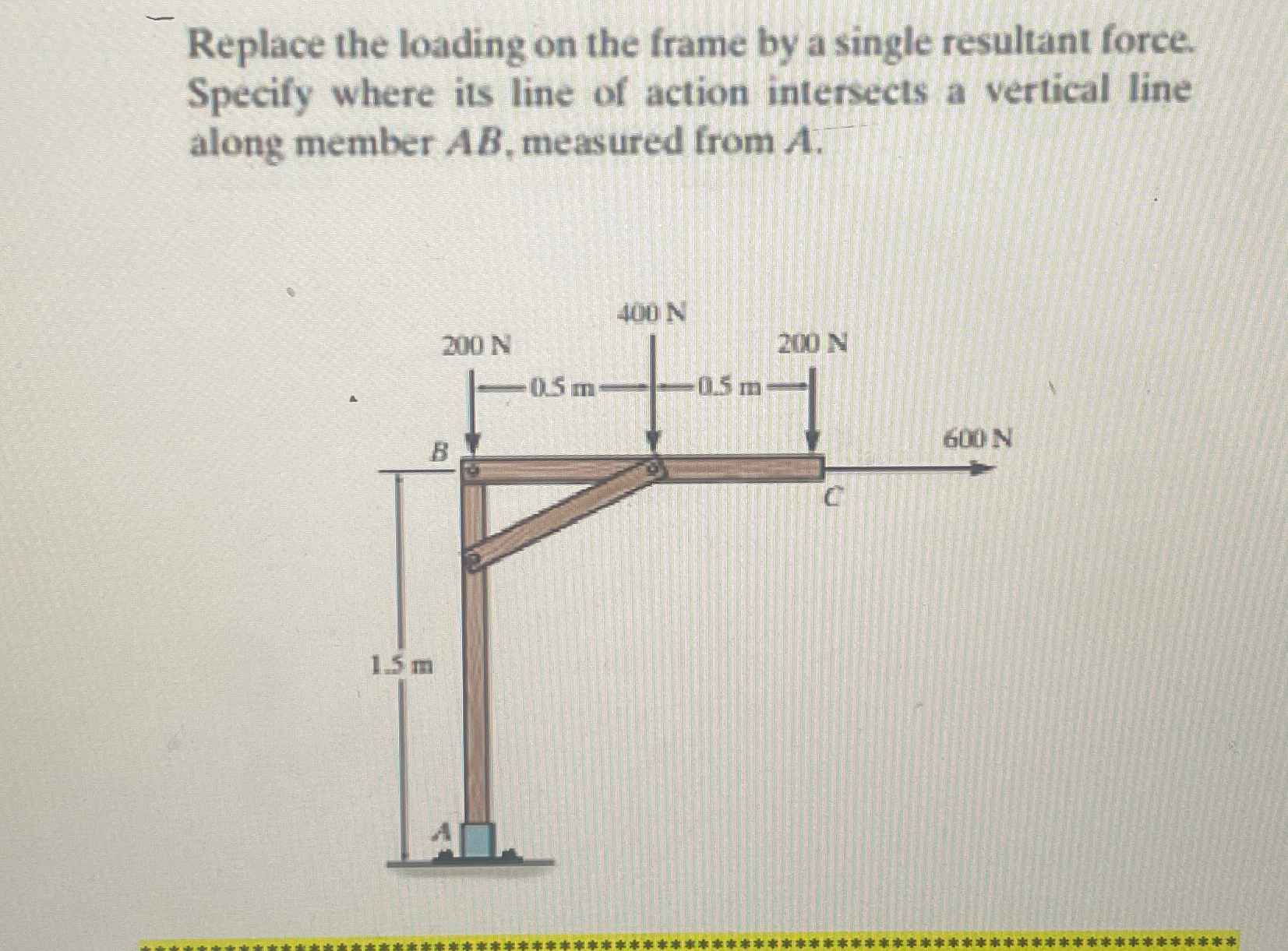

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a vertical tine along member AB, measured from A.
Replace the loading on the frame by a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

* 4 - 1 2 0 . Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member A B , measured from A . 4 - 1 2 1 . Replace the loading on the frame by...
