Question: Replace the loading on the frame shown in by a single resultant force. Take F 1 = 5 0 0 N and F 2 =

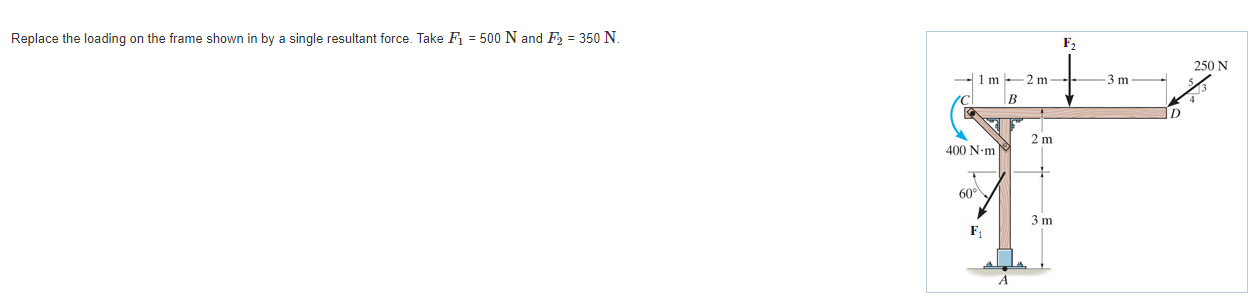

Replace the loading on the frame shown in by a single resultant force. Take F1=500N and F2=350N.
Specify where line of action intersects CD, measured from C.
Replace the loading on the frame shown in by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

1. Determine the magnitude of the resultant force Fx and its direction, measured clockwise from the positive u axis. 701 30 459 5-300 N 500 N 325 N 2. If the resultant force acting on the bracket is...

Q:

Replace the loading acting on the beam shown in (Figure 1) by a single resultant force. Take F1 = 450 N , F2 = 350 N , and F3 = 700 N . Figure1 of 1 A beam of length 9 meters extends to the right...

Q:

Worksheet, 4.7-4.8 *4-112. The belt passing over the pulley is subjected to two forces F, and F2. each having a magnitude of 40 N. F, acts in the -k direction. Replace these forces by an equivalent...

Q:

Replace the loading acting on the beam with a single resultant force. Take F 1 = 420 N , F 2 = 300 N , F 3 = 740 N . (Figure 1) Part A Determine the magnitude of the resultant force. Part B Determine...

Q:

Worksheet, 4.7-4.8 -4-112. The belt passing over the pulley is subjected to two forces F, and Fy. each having a magnitude of 40 N. F, acts in the -k direction, Replace these forces by an equivalent...

Q:

Replace the force system with a single resultant force. Let F = [F] KN. e) Determine the point y on the y-axis through which the resultant must pass. 8 kN-m 3 m 5 m F 13/12 4 m A 4 m P 3 m 4 kN 60

Q:

Replace the loading shown by an equivalent single resultant force and specify the x and y coordinates of its line of action. Assume F 1 = 1 8 1 N and F 2 = 2 9 8 N . Determine the y coordinates of...

Q:

Clearly show your work for each problem ( 2 problems and 1 bonus ) . Box your final solution ( make sure you use proper significant figures and include units ) . A 5 m beam ( AD ) is shown below with...

Q:

Replace the three forces acting on the shaft by a single resultant force. Specify where the force acts, measured from end B. Given: F1 = 500 lb F2 = 200 lb F3 = 260 lb a = 5 ft e = 3 b = 3 ft f = 4 c...

Q:

Replace the three forces acting on the shaft by a single resultant force. Specify where the force acts, measured from end B. Given: F1 = 500 lb F2 = 200 lb F3 = 260 lb a = 5 ft e = 3 b = 3 ft f = 4 c...
