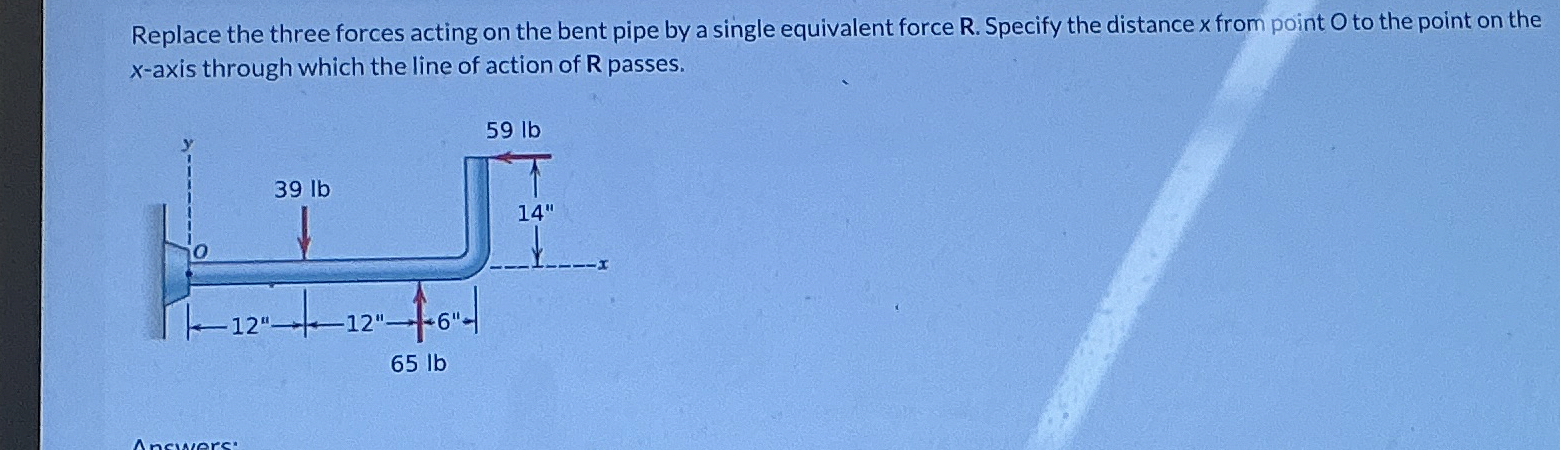

Question: Replace the three forces acting on the bent pipe by a single equivalent force R . Specify the distance x from point O to the

Replace the three forces acting on the bent pipe by a single equivalent force R. Specify the distance x from point O to the point on the
x-axis through which the line of action of R passes.
Replace the three forces acting on the bent pipe

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
