Required information

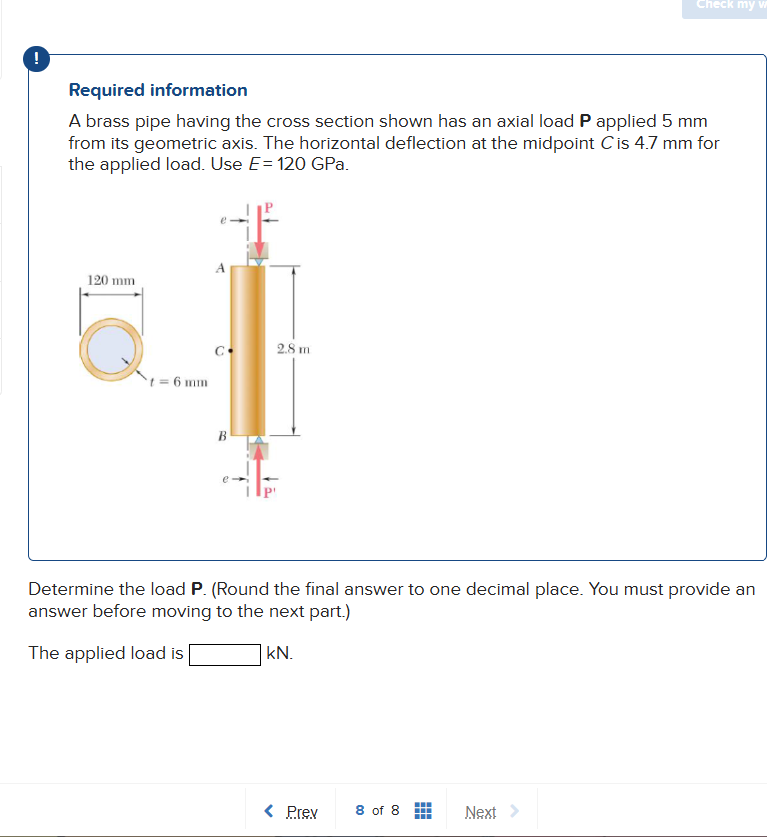

A brass pipe having the cross section shown has an axial load \(\mathbf{P}\) applied 5 mm from its geometric axis. The horizontal deflection at the midpoint \( C \) is 4.7 mm for the applied load. Use \( E=120\mathrm{GPa}\).
Determine the load \(\mathbf{P}\).(Round the final answer to one decimal place. You must provide an answer before moving to the next part.)
The applied load is
