Question: ! Required information Consider the given beam and loading. Determine the maximum absolute values of the shear and bending moment. ( Round the final answer

!
Required information

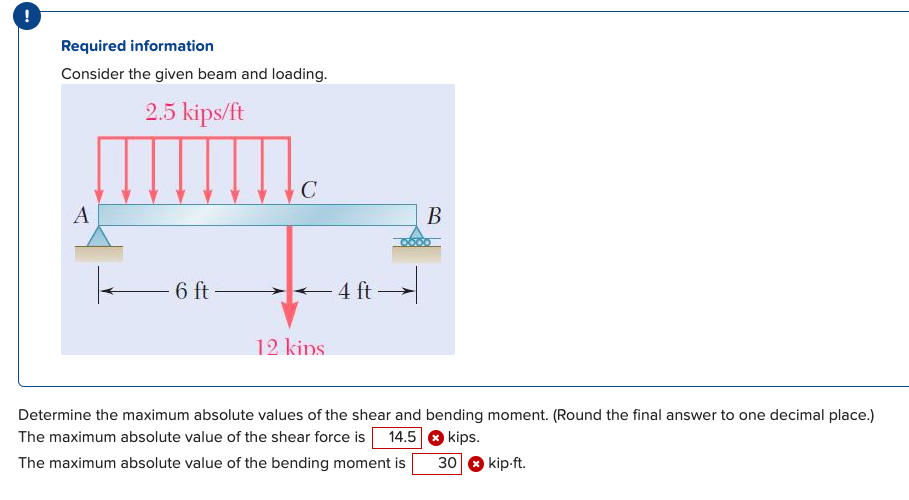

Consider the given beam and loading.
Determine the maximum absolute values of the shear and bending moment. (Round the final answer to one decimal place.)
The maximum absolute value of the shear force is
kips.
The maximum absolute value of the bending moment is
kip.ft.
! Required information Consider the given beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
