Required information

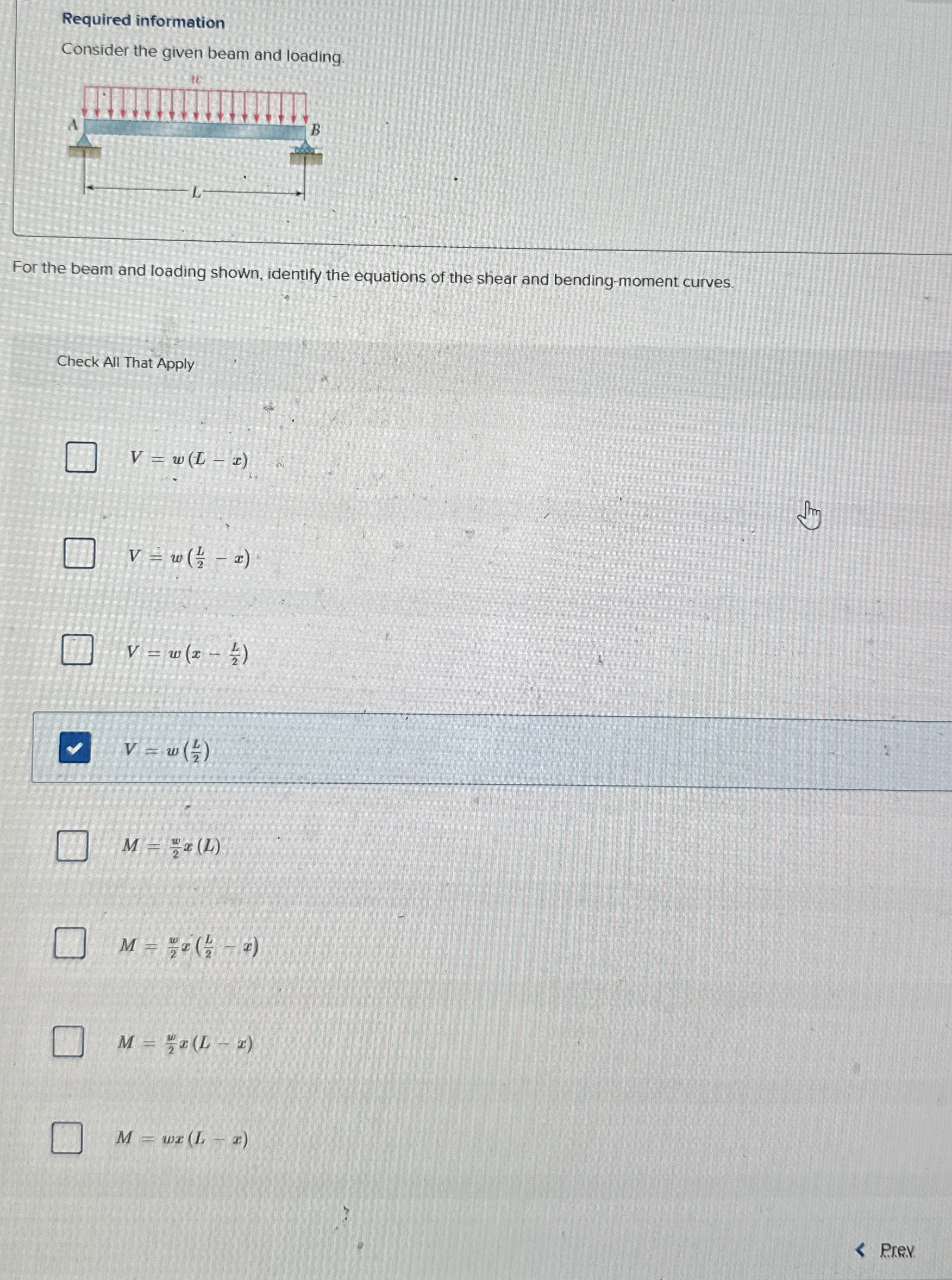

Consider the given beam and loading.

For the beam and loading shown, identify the equations of the shear and bending$-$moment curves.

Check All That Apply

$V=w(L-x)$

$V=w(\frac{L}{2}-x)$

$V=w(x-\frac{L}{2})$

$V=w(\frac{L}{2})$

$M=\frac{w}{2}x(L)$

$M=\frac{w}{2}x(\frac{L}{2}-x)$

$M=\frac{w}{2}x(L-x)$

$M=wx(L-x)$
