Required information

Problem $05\mathrm{.}041-$ Identify shear and bending moment diagrams and Identify max shear and bending moment $-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL PARTS

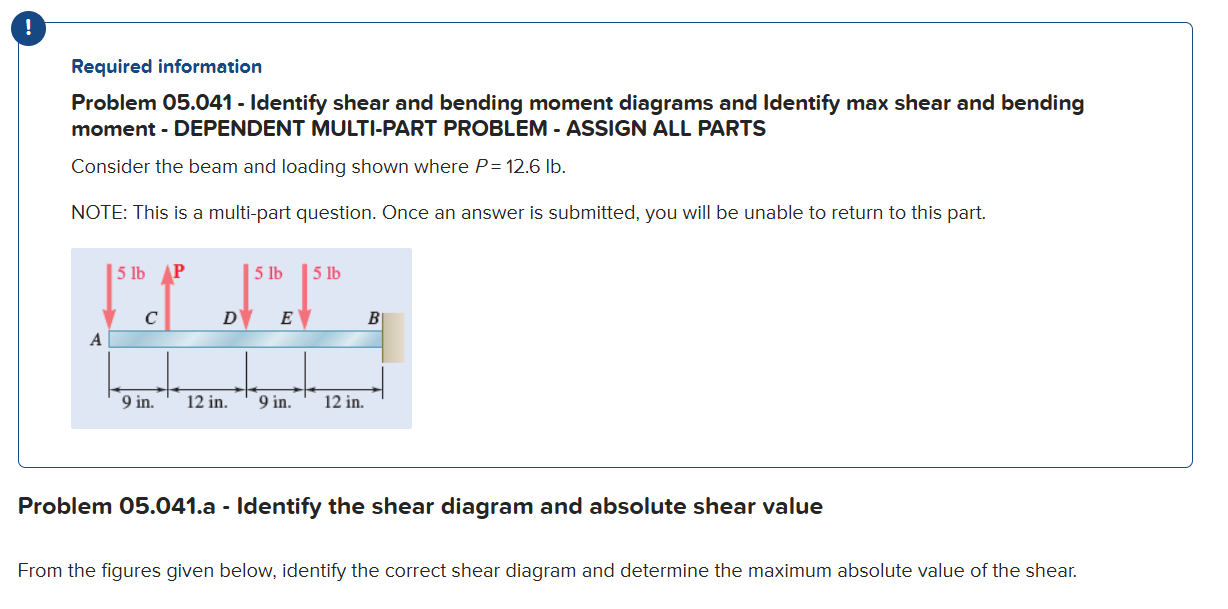

Consider the beam and loading shown where $\backslash ($ P$=12\mathrm{.}6\backslash$mathrm$\{$lb$\}\backslash ).$

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

Problem $05\mathrm{.}041.$a $-$ Identify the shear diagram and absolute shear value

From the figures given below, identify the correct shear diagram and determine the maximum absolute value of the shear.

Figure $1$

Figure $2$ Figure $3$

Figure $4$

The correct shear diagram is

The maximum absolute value of the shear is

lb$.$
