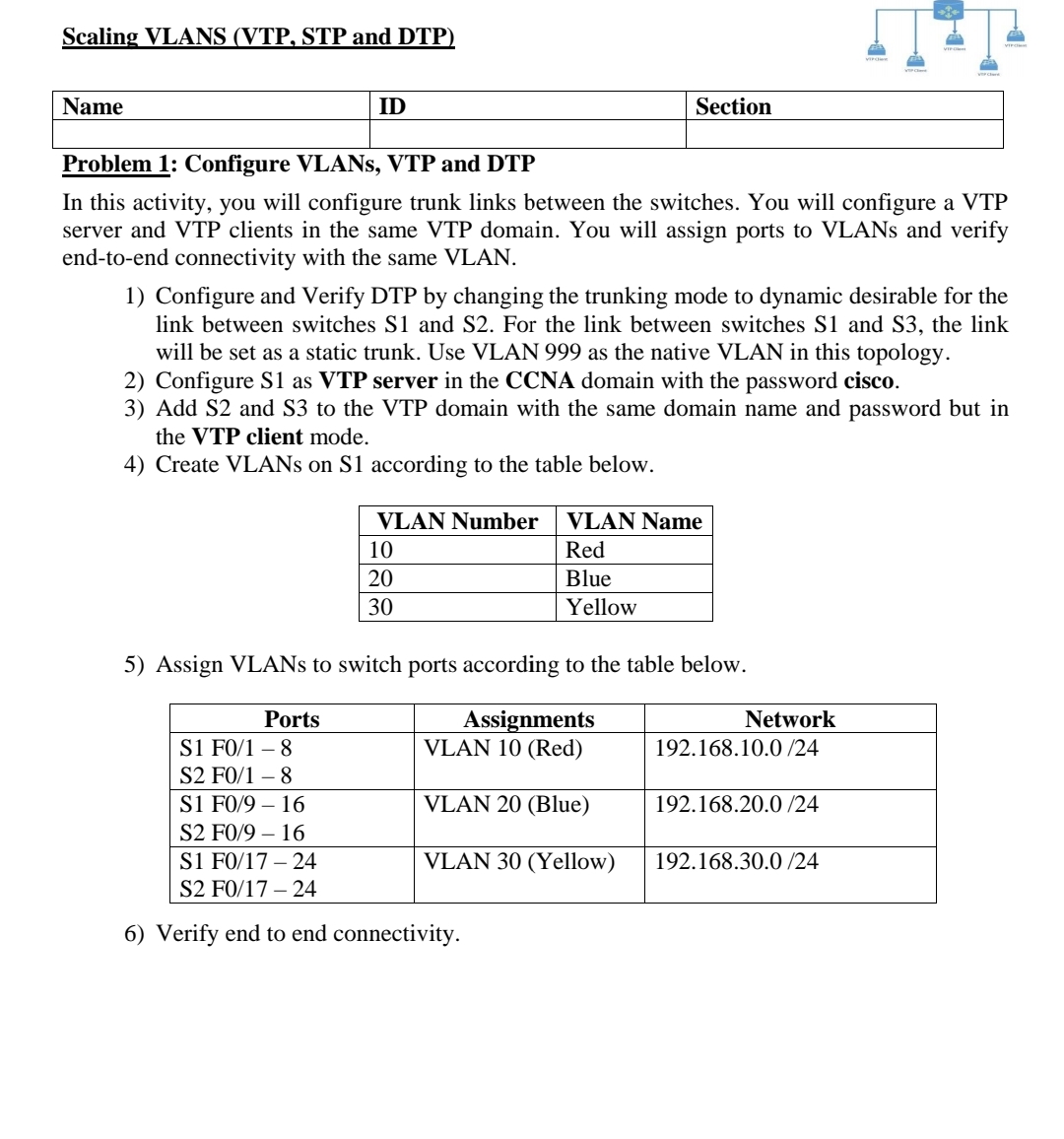

Scaling VLANS $($VTP$,$ STP and DTP$)$

Problem $1$: Configure VLANs, VTP and DTP

In this activity, you will configure trunk links between the switches. You will configure a VTP

server and VTP clients in the same VTP domain. You will assign ports to VLANs and verify

end$-$to$-$end connectivity with the same VLAN.

Configure and Verify DTP by changing the trunking mode to dynamic desirable for the

link between switches S$1$ and S$2.$ For the link between switches S$1$ and S$3,$ the link

will be set as a static trunk. Use VLAN $999$ as the native VLAN in this topology.

Configure S$1$ as VTP server in the CCNA domain with the password cisco.

Add S$2$ and S$3$ to the VTP domain with the same domain name and password but in

the VTP client mode.

Create VLANs on S$1$ according to the table below.

Assign VLANs to switch ports according to the table below.

Verify end to end connectivity.I$\text{'}$m
