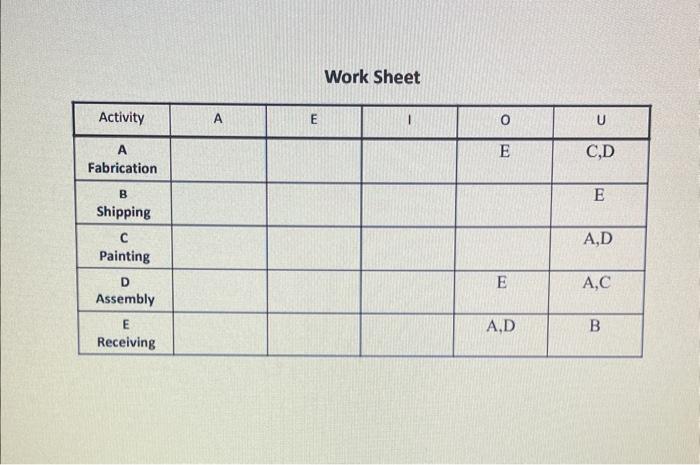

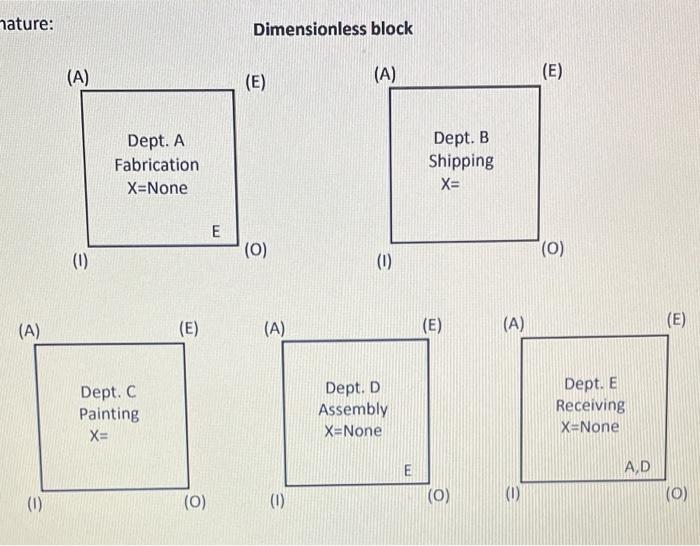

Section C: (50 points) Calculation A company produces five products in its production facility. The facility has five departments (Fabrication, Shipping, Painting, Assembly, Receiving) which are labeled with A, B, C, D and E. The routing information, production quantities, and volumes for each product are given in the table below. (a) (15 points) Determine the form-to chart. (b) (15 points) Determine the from-between chart. (c) (10 points) Determine the activity relationship diagram (d) (5 points) Make the work Sheet. (e) (5 points) Make the dimensionless block Signature: The From-To Chart To The From-to chart To From Signature: The activity relationship diagram Cade Drienou The total number of relationships, N= ? E Eipecial meoranal 1. Lispitize 0 Oreming mpotiece Work Sheet 1atire: Llank. Section C: (50 points) Calculation A company produces five products in its production facility. The facility has five departments (Fabrication, Shipping, Painting, Assembly, Receiving) which are labeled with A, B, C, D and E. The routing information, production quantities, and volumes for each product are given in the table below. (a) (15 points) Determine the form-to chart. (b) (15 points) Determine the from-between chart. (c) (10 points) Determine the activity relationship diagram (d) (5 points) Make the work Sheet. (e) (5 points) Make the dimensionless block Signature: The From-To Chart To The From-to chart To From Signature: The activity relationship diagram Cade Drienou The total number of relationships, N= ? E Eipecial meoranal 1. Lispitize 0 Oreming mpotiece Work Sheet 1atire: Llank
