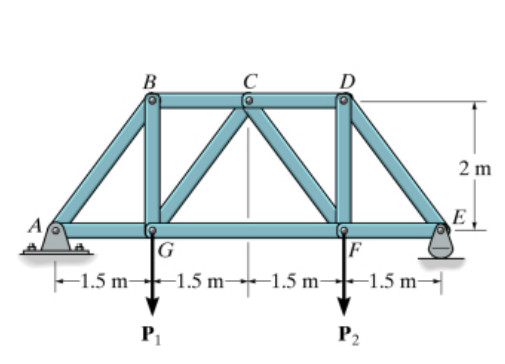

Question: Set P 1 = 2 4 kN , P 2 = 1 4 kN . Determine the force in members AB , AG , BC

Set P1=24 kN, P2=14 kN. Determine the force in members AB,
AG, BC, BG, CD, CF, CG, DE, DF, EF, and FG of the truss. Express
your answer to three significant figures and include the
appropriate units. Enter negative value in the case of compression
and positive value in the case of tension.
