Question: Set P 1 = P 2 = 3 k N . ( Figure 1 ) Figure 1 of 1 Part A Determine the force in

Set P1=P2=3kN.(Figure 1)
Figure
1 of 1
Part A
Determine the force in member AB of the truss.
Express your answer to three significant figures and include the appropriate 4
Request Answer
Part B
Determine the force in member BC of the truss.
Express your answer to three significant figures and include the appropriate units
Request Answer
Part C
Determine the force in member BD of the truss.
Express your answer to three significant figures and include the appropriate units. En

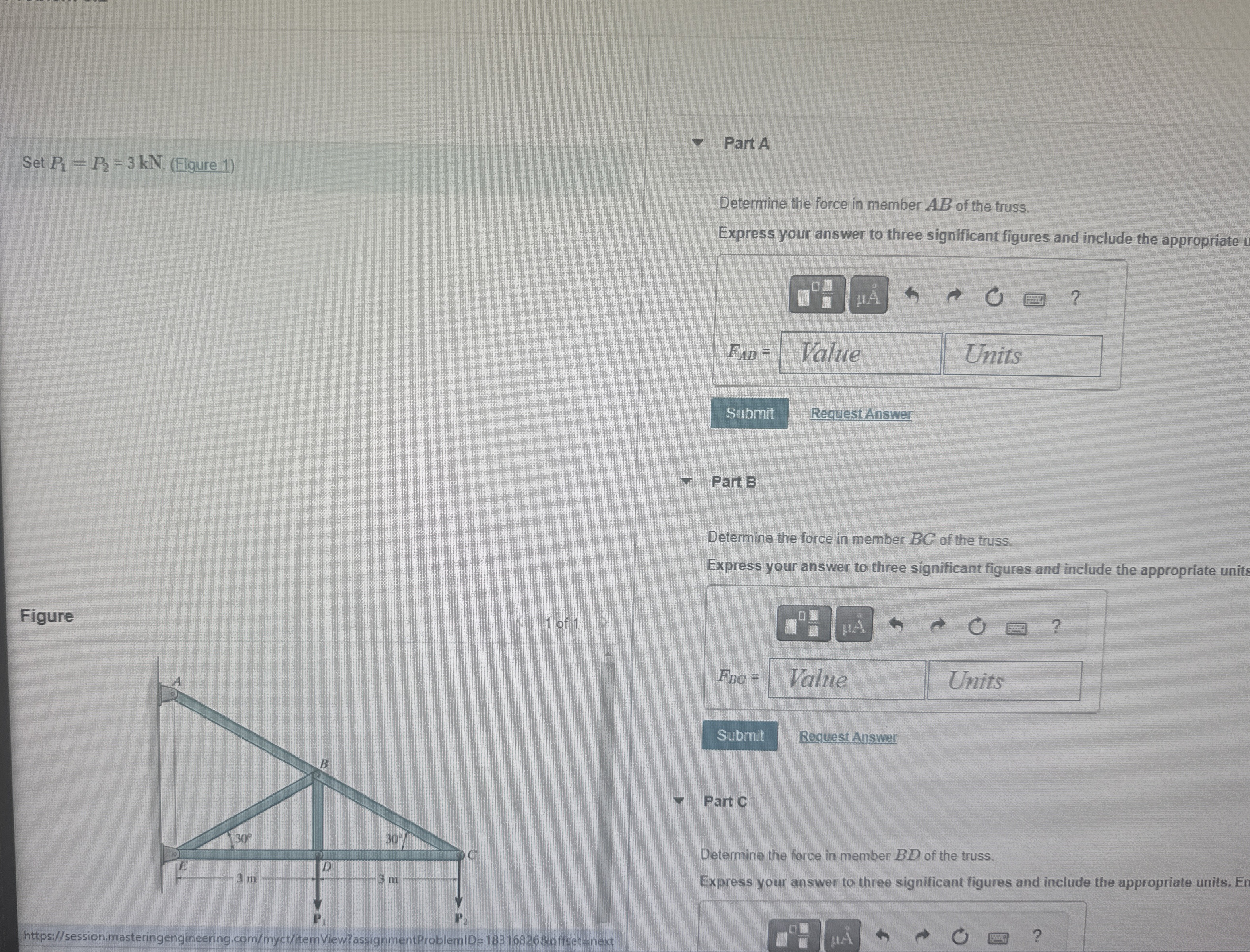

Set P 1 = P 2 = 3 k N . ( Figure 1 ) Figure 1 of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
