Question: Show m e the steps t o solve Another cantilever beam, a s the one shown below from both sides, i s subjected t o

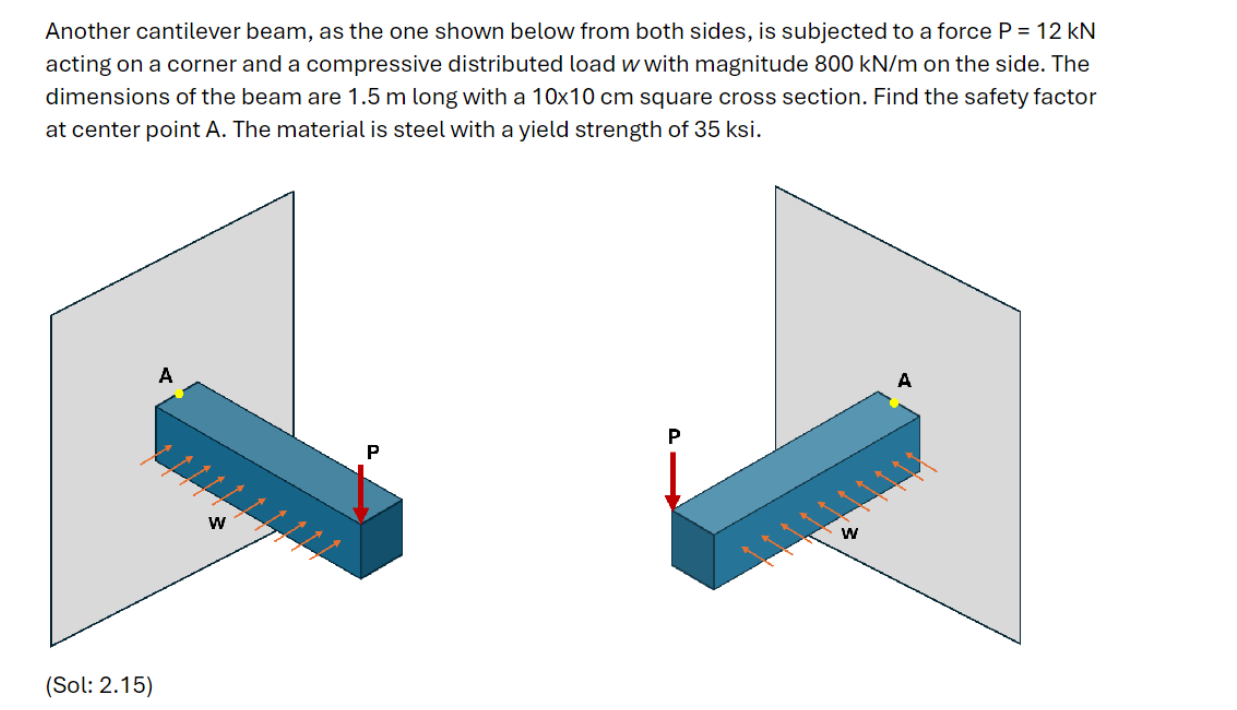

Show me the steps to solve "Another cantilever beam, as the one shown below from both sides, is subjected to a force P=12kN
acting on a corner and a compressive distributed load w with magnitude 800kNmon the side. The
dimensions of the beam are 1.5m long with a10x10cm square cross section. Find the safety factor
at center point A. The material is steel with a yield strength of35 ksi."Another cantilever beam, as the one shown below from both sides, is subjected to a force P=12kN
acting on a corner and a compressive distributed load w with magnitude 800kNmon the side. The
dimensions of the beam are 1.5m long with a1010cm square cross section. Find the safety factor
at center point A. The material is steel with a yield strength of35 ksi. The Answer is 2.15. I'm just confused on how to arrive there especially identifying the types of stresses.
Show m e the steps t o solve "Another cantilever

Step by Step Solution

There are 3 Steps involved in it
