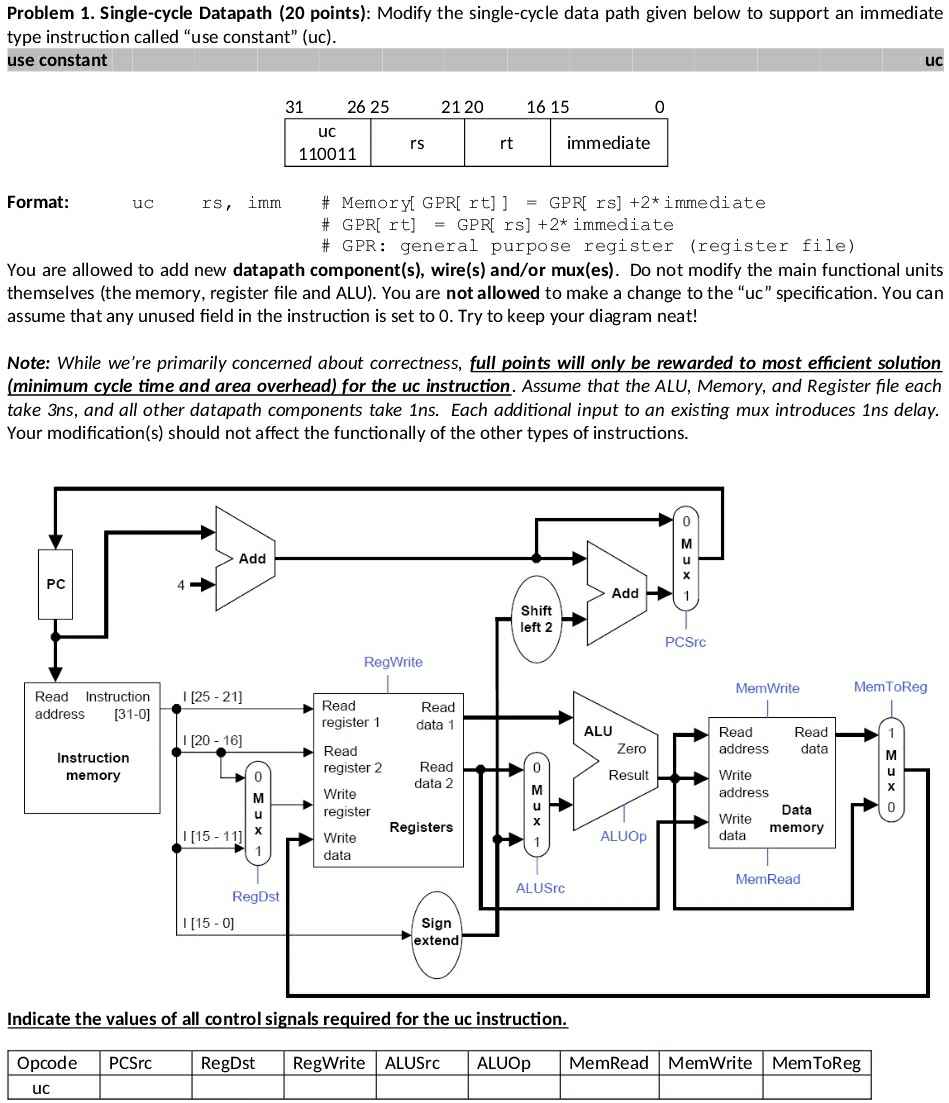

Question: Show the modified single - cycle data path that supports the immediate type instruction called use constant ( uc ) . Indicate the values of

Show the modified single-cycle data path that supports the immediate type instruction called use constant (uc). Indicate the values of all control signals required for the uc instruction.
Show the modified single - cycle data path that

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
