Question: Show your work step - by - step with proper units. Consider the system shown. Determine the trasfer function of the closed - loop system

Show your work step-by-step with proper units.

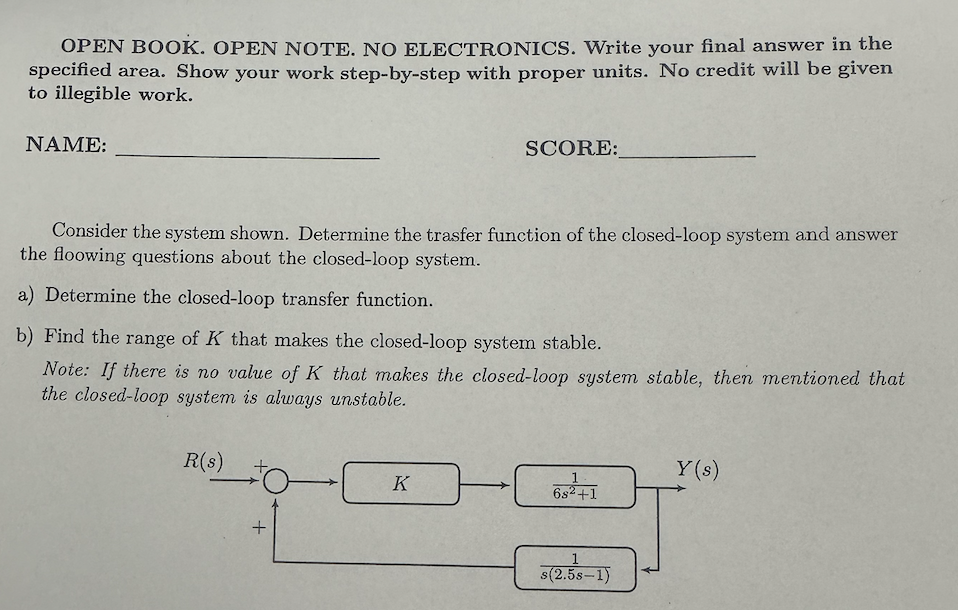

Consider the system shown. Determine the trasfer function of the closed-loop system and answer
a) Determine the closed-loop transfer function.
b) Find the range of K that makes the closed-loop system stable.
Note: If there is no value of K that makes the closed-loop system stable, then mentioned that the closed-loop system is always unstable.
hand written please show all steps
Show your work step - by - step with proper

Step by Step Solution

There are 3 Steps involved in it
