Question: Simple Example of Determining the Critical Path 6 Consider the following project network .diagram. Assume all times are in days C=2 4 E=1 start A=2

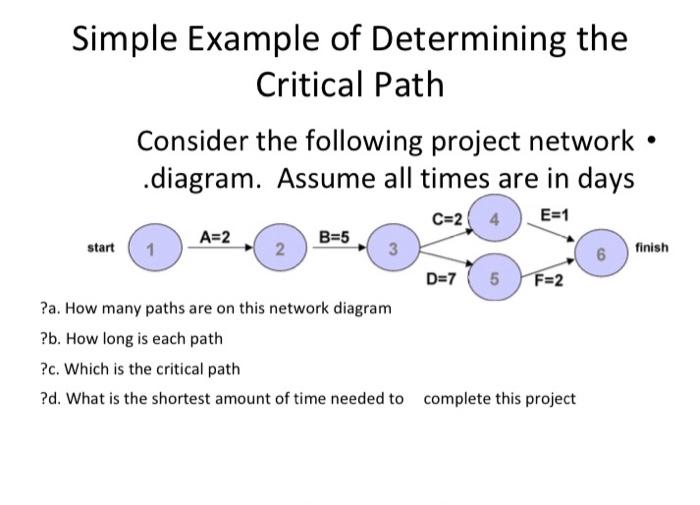

Simple Example of Determining the Critical Path 6 Consider the following project network .diagram. Assume all times are in days C=2 4 E=1 start A=2 B=5 1 2 3 finish D=7 5 F=2 ?a. How many paths are on this network diagram ?b. How long is each path ?c. Which is the critical path ?d. What is the shortest amount of time needed to complete this project 5

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Consider the following project network .diagram. Assume all times are in days C=2 E=1 A=2 B=5 start 1 finish D=7 F=2 ?a. How many paths are on this network diagram ?b. How long is each path ?c....
