Solve #17 below: Change task K's time from 15 to 14

a. Draw the precedence diagram.

b. What is the workstation cycle time required to produce 360 units per day?

c. Balance this line using the largest number of following tasks. Use the longest task time as a secondary criterion.

d. What is the efficiency of your line balance, assuming it is running at the cycle time from part (b)?

1. what is the workstation cycle time required to produce 1,000 unite per day?

2. Balance the line using the longest task time based on the 1,000 unit forecast stating which tasks would be done in each workstation.

3. For part b, what is the efficiency of your line balance, assuming it is running at the cycle time shown in #2.

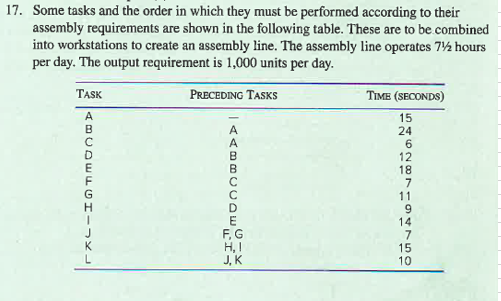

17. Some tasks and the order in which they must be performed according to their assembly requirements are shown in the following table. These are to be combined into workstations to create an assembly line. The assembly line operates 74 hours per day. The output requirement is 1,000 units per day. TASK PRECEDING TASKS TIME (SECONDS) A B XL-ITMO 15 24 6 12 18 7 11 9 14 F, G H! JK 15 10
