Question: Solve using MATLAB please Water flow around a concrete bridge pier that has a cross section in the shape of a Rankine oval, formed by

Solve using MATLAB please

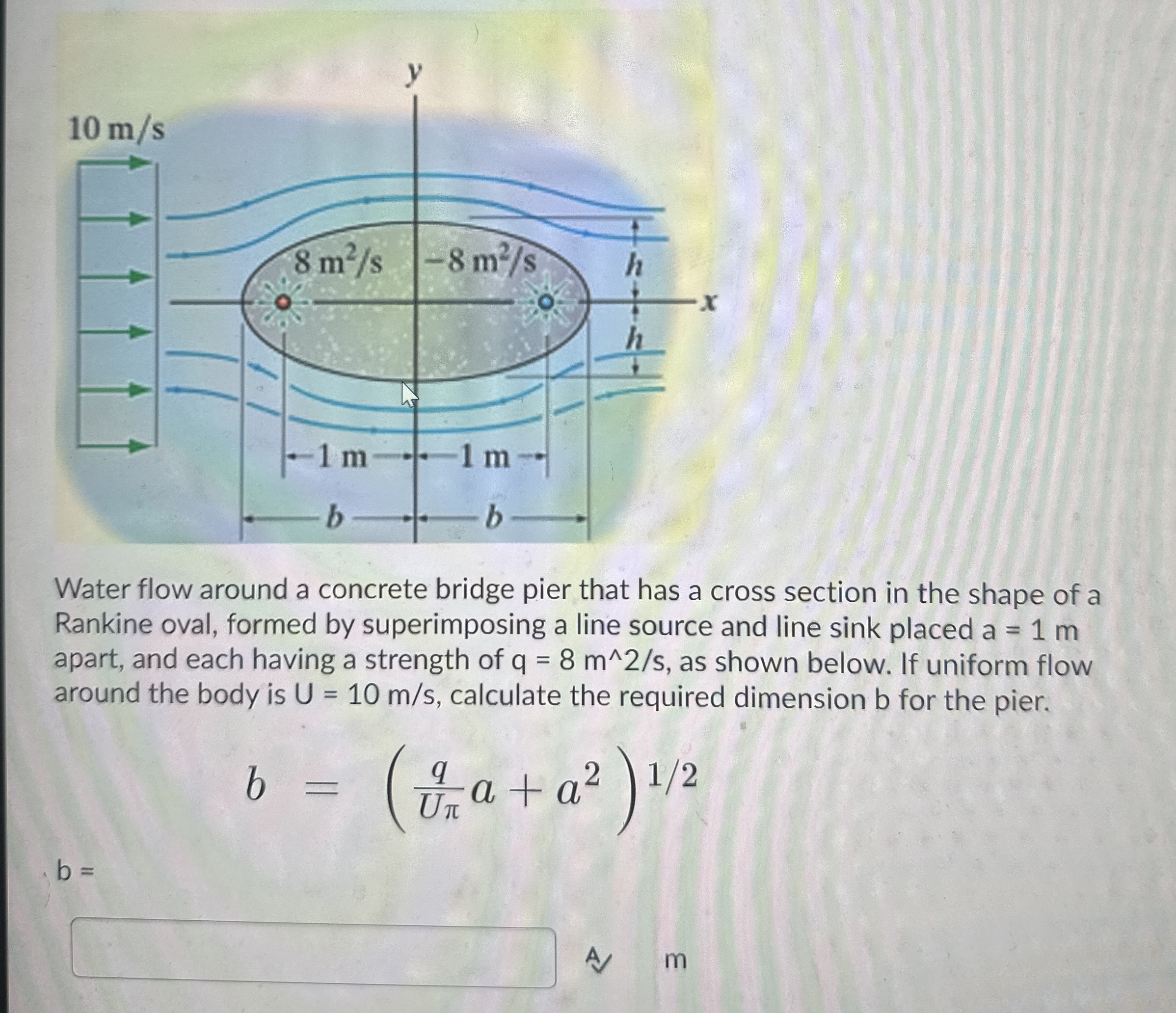

Water flow around a concrete bridge pier that has a cross section in the shape of a Rankine oval, formed by superimposing a line source and line sink placed a=1m apart, and each having a strength of q=8m2s, as shown below. If uniform flow around the body is U=10ms, calculate the required dimension b for the pier.
b=(qUa+a2)12
b=
A m
Solve using MATLAB please Water flow around a
