Solve with the numerical values from steam table please. ASAP plz$.$

A steam power plant operates on an ideal regenerative Rankine cycle with reheat.

The boiler delivers steam at $1400$ psia and $1200.$ Some steam is extracted from

the high pressure turbine at $700$ psia for the Closed FWH$,$ is condensed and sent

through a trap to the condenser. The remaining steam exits the high pressure

turbine at $600$ psia and is reheated to $1400F$ and then passes through the low

pressure turbine and into the condenser which operates at $5$ psia. A trap is a

throttling device that drops the pressure of the fluid. See chapter $4$ to determine

how to handle a throttling device.

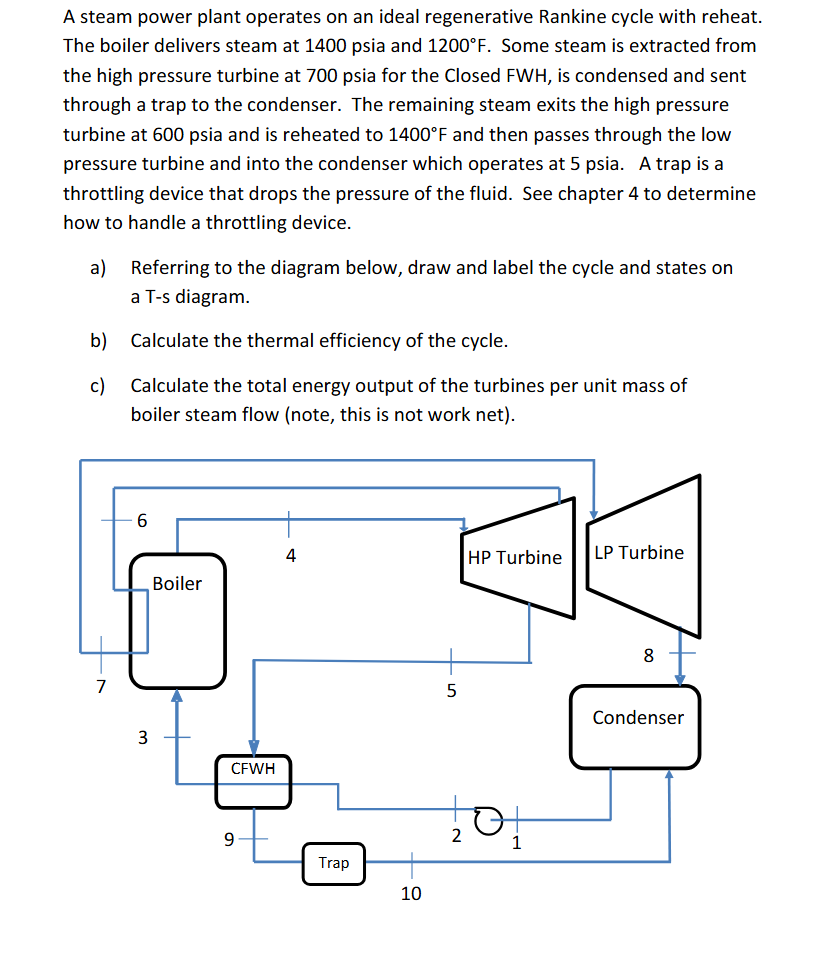

a$)$ Referring to the diagram below, draw and label the cycle and states on

a T$-$s diagram.

b$)$ Calculate the thermal efficiency of the cycle.

c$)$ Calculate the total energy output of the turbines per unit mass of

boiler steam flow $($note$,$ this is not work net$).$
