Question: Statically indeterminate A torque T = 4 0 kip * i n . is applied at end A of the composite shaft shown. Knowing that

Statically indeterminate

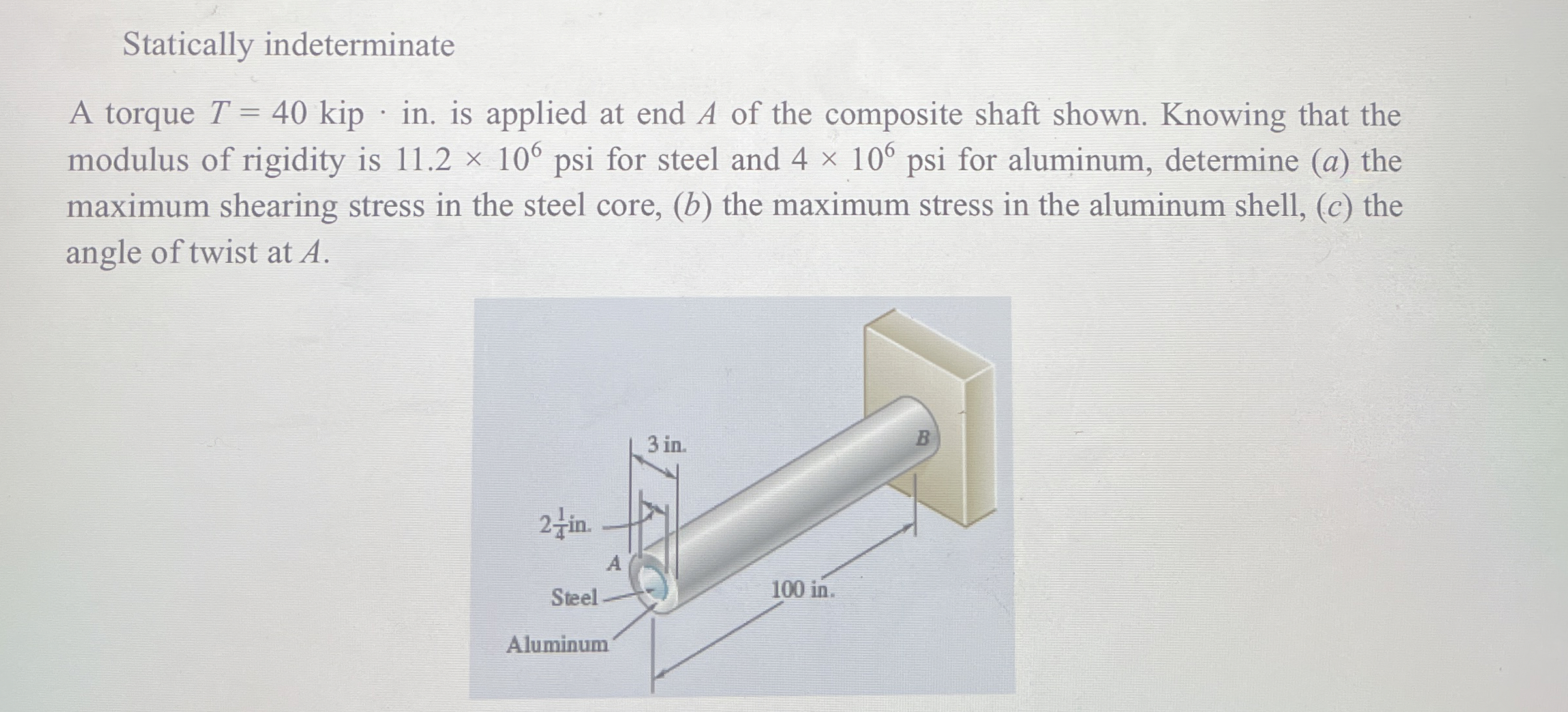

A torque T=40kip*in. is applied at end A of the composite shaft shown. Knowing that the
modulus of rigidity is 11.2106 for steel and 4106 for aluminum, determine (a) the
maximum shearing stress in the steel core, (b) the maximum stress in the aluminum shell, (c) the
angle of twist at A.
Statically indeterminate A torque T = 4 0 kip * i
