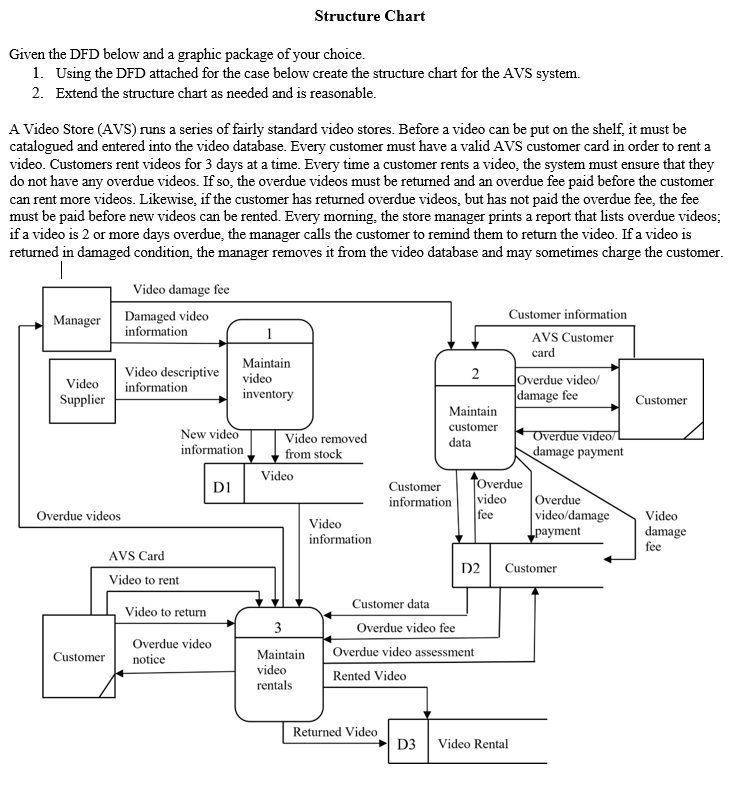

Structure Chart Given the DFD below and a graphic package of your choice 1. Using the DFD attached for the case below create the structure chart for the AVS system. 2. Extend the structure chart as needed and is reasonable. A Video Store (AVS) runs a series of fairly standard video stores. Before a video can be put on the shelf, it must be catalogued and entered into the video database. Every customer must have a valid AVS customer card in order to rent a video. Customers rent videos for 3 days at a time. Every time a customer rents a video, the system must ensure that they do not have any overdue videos. If so, the overdue videos must be returned and an overdue fee paid before the customer can rent more videos. Likewise, if the customer has returned overdue videos, but has not paid the overdue fee, the fee must be paid before new videos can be rented. Every morning, the store manager prints a report that lists overdue videos; if a video is 2 or more days overdue, the manager calls the customer to remind them to return the video. If a video is returned in damaged condition, the manager removes it from the video database and may sometimes charge the customer Video damage fee Customer information ManagerDamaged video information AVS Customer card Maintain Video descriptive video Videoinformation Supplier Overdue video/ damage fee inventory Customer Maintain customer data New video information Video removed from stock verdue vi damage payment Video D1 Customer informationvideo Overdue Overdue videos video/damage Video Video information damage fee ayment AVS Carod D2 Customer Video to rent Customer data Video to return Overdue video fee Overdue video MaintainOverdue video assess video rentals Customer notice Rented Video Returned Video D3 Video Rental Structure Chart Given the DFD below and a graphic package of your choice 1. Using the DFD attached for the case below create the structure chart for the AVS system. 2. Extend the structure chart as needed and is reasonable. A Video Store (AVS) runs a series of fairly standard video stores. Before a video can be put on the shelf, it must be catalogued and entered into the video database. Every customer must have a valid AVS customer card in order to rent a video. Customers rent videos for 3 days at a time. Every time a customer rents a video, the system must ensure that they do not have any overdue videos. If so, the overdue videos must be returned and an overdue fee paid before the customer can rent more videos. Likewise, if the customer has returned overdue videos, but has not paid the overdue fee, the fee must be paid before new videos can be rented. Every morning, the store manager prints a report that lists overdue videos; if a video is 2 or more days overdue, the manager calls the customer to remind them to return the video. If a video is returned in damaged condition, the manager removes it from the video database and may sometimes charge the customer Video damage fee Customer information ManagerDamaged video information AVS Customer card Maintain Video descriptive video Videoinformation Supplier Overdue video/ damage fee inventory Customer Maintain customer data New video information Video removed from stock verdue vi damage payment Video D1 Customer informationvideo Overdue Overdue videos video/damage Video Video information damage fee ayment AVS Carod D2 Customer Video to rent Customer data Video to return Overdue video fee Overdue video MaintainOverdue video assess video rentals Customer notice Rented Video Returned Video D3 Video Rental
