Question: STUDENT EXERCISE Exercise #4 Based on the activities and logic provided in the notes below, draw the network di- agram for this project. Since the

STUDENT EXERCISE Exercise #4 Based on the

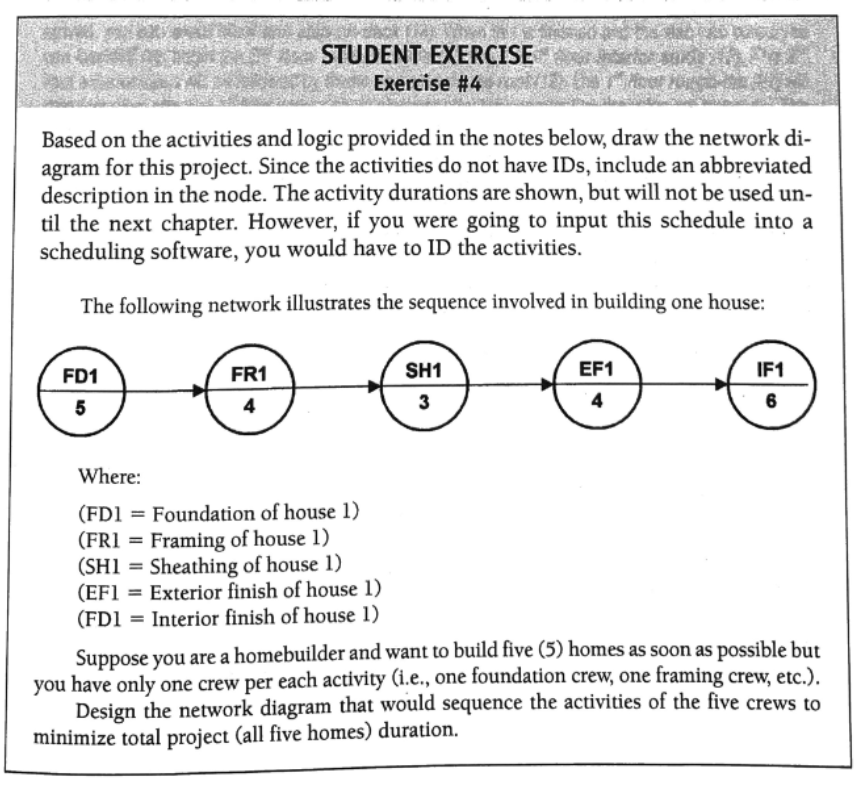

STUDENT EXERCISE Exercise #4 Based on the activities and logic provided in the notes below, draw the network di- agram for this project. Since the activities do not have IDs, include an abbreviated description in the node. The activity durations are shown, but will not be used un- til the next chapter. However, if you were going to input this schedule into a scheduling software, you would have to ID the activities. The following network illustrates the sequence involved in building one house: FD1 5 FR1 4 SH1 3 EF1 4 IF1 6 Where: (FD1 = Foundation of house 1) (FR1 = Framing of house 1) (SHI = Sheathing of house 1) (EF1 = Exterior finish of house 1) (FD1 = Interior finish of house 1) Suppose you are a homebuilder and want to build five (5) homes as soon as possible but you have only one crew per each activity (i.e., one foundation crew, one framing crew, etc.). Design the network diagram that would sequence the activities of the five crews to minimize total project (all five homes) duration

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
