subject: Computer Architecture

please provide answer for the 15 marks

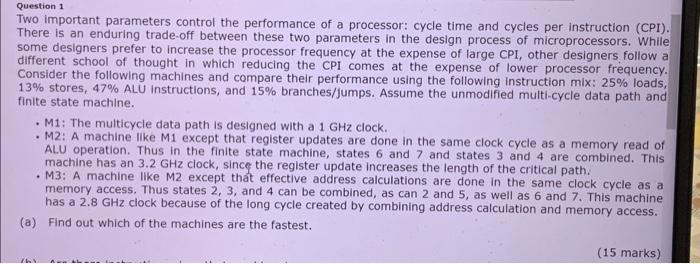

Two important parameters control the performance of a processor: cycle time and cycles per instruction (CPI). There is an enduring trade-off between these two parameters in the design process of microprocessors. While some designers prefer to increase the processor frequency at the expense of large CPI, other designers follow a different school of thought in which reducing the CPI comes at the expense of lower processor frequency. Consider the following machines and compare their performance using the following instruction mix: 25% loads, 13% stores, 47% ALU instructions, and 15% branches/jumps. Assume the unmodified multi-cycle data path and finite state machine. - M1: The multicycle data path is designed with a 1GHz clock. - M2: A machine like M1 except that register updates are done in the same clock cycle as a memory read of ALU operation. Thus in the finite state machine, states 6 and 7 and states 3 and 4 are combined. This machine has an 3.2GHz clock, since the register update increases the length of the critical path. - M3: A machine like M2 except that effective address calculations are done in the same clock cycle as a memory access. Thus states 2,3 , and 4 can be combined, as can 2 and 5 , as well as 6 and 7 . This machine has a 2.8GHz clock because of the long cycle created by combining address calculation and memory access. (a) Find out which of the machines are the fastest
