Question: Superposition: Combined Beam Example 1 The solid d = 1 in . diameter steel E = 3 0 , 0 0 0 ksi shaft shown

Superposition: Combined Beam Example 1

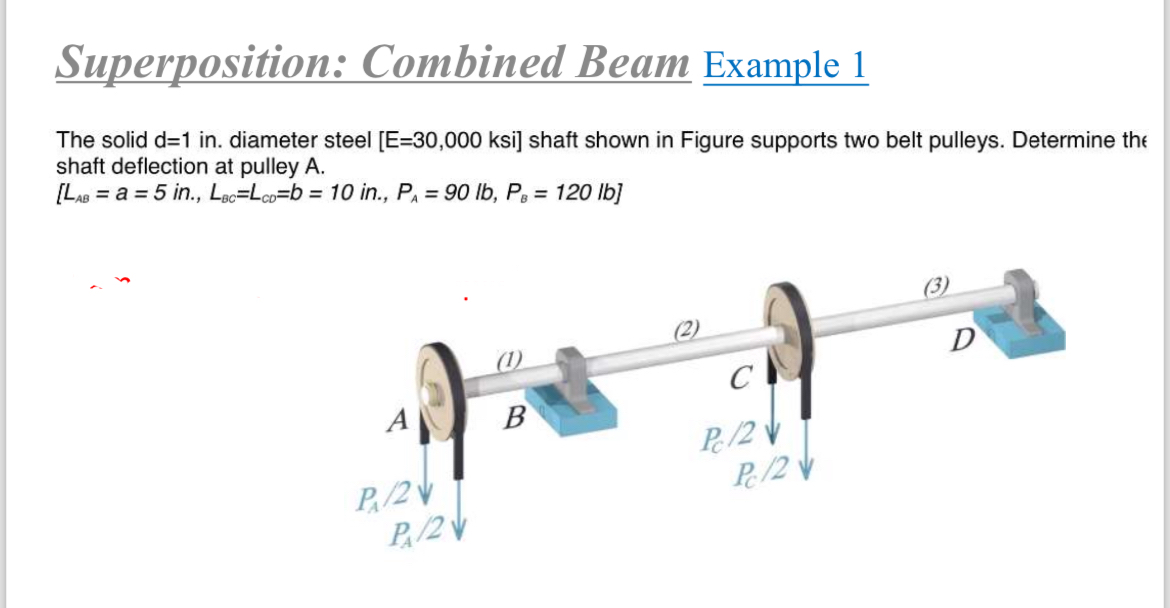

The solid d=1 in. diameter steel E=30,000ksi shaft shown in Figure supports two belt pulleys. Determine the shaft deflection at pulley A .
LAB=a=5in.,LBC=LCD=b=10in.,PA=90lb,PB=120lb
Superposition: Combined Beam Example 1 The solid

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Example 1 The solid d = 1 in . diameter steel [ E = 3 0 , 0 0 0 ksi ] shaft shown in Figure supports two belt pulleys. Determine the shaft deflection at pulley A . L A B = a = 5 i n . , L B C = L C D...
