Question: Suppose that P 1 = 2 2 kN , P 2 = 3 3 kN , and P 3 = 4 4 kN . (

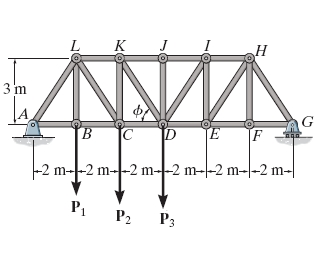

Suppose that P1=22 kN, P2=33 kN, and P3=44 kN.(Figure 1)
1. Determine the force in member KJ of the Pratt truss.
2. Determine the force in member KD of the Pratt truss.
3. Determine the force in member CD of the Pratt truss.
Suppose that P 1 = 2 2 kN , P 2 = 3 3 kN , and P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
