Question: Table 1 represent the Information System development task list. Table 1 Activity Immediate Predecessors Duration Estimates 1. A 2. B 1 6 3. C 2

Table 1 represent the Information System

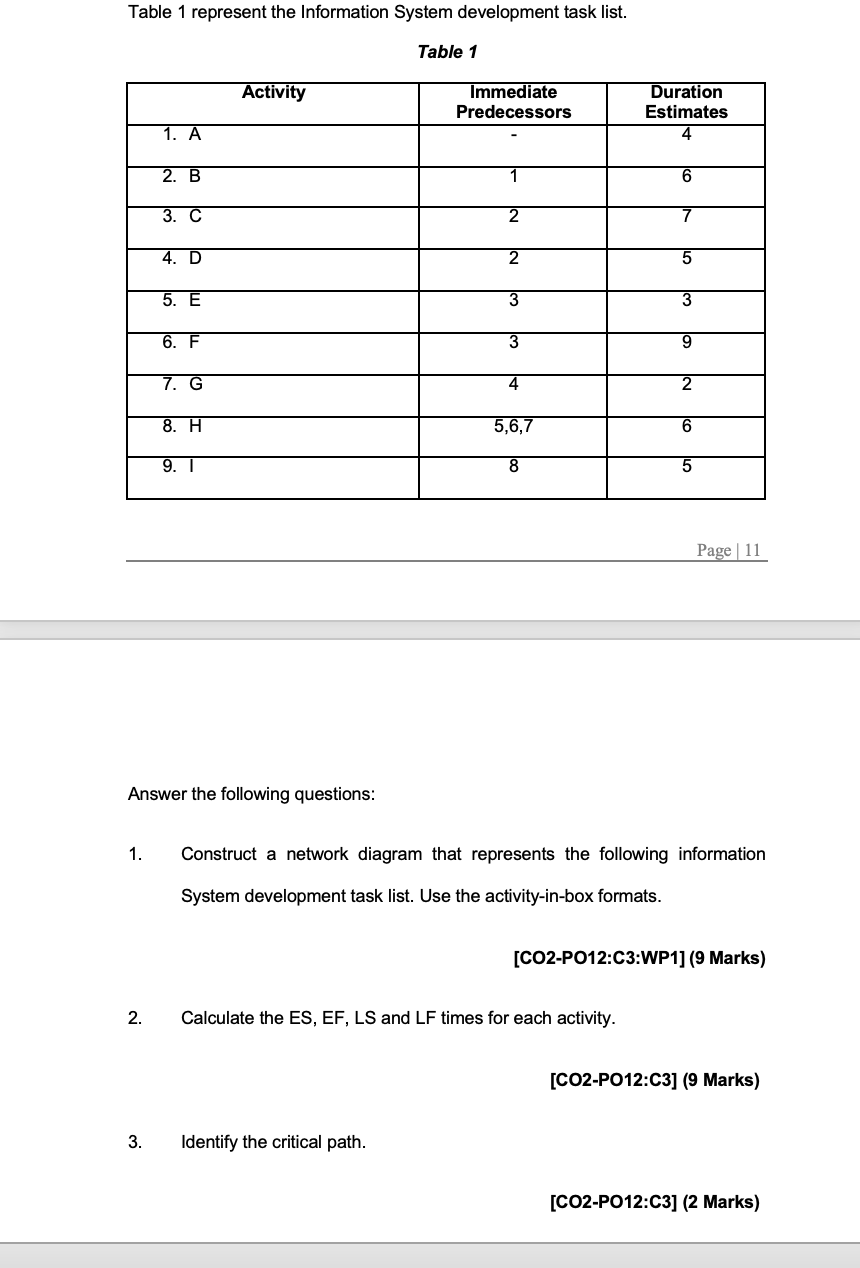

Table 1 represent the Information System development task list. Table 1 Activity Immediate Predecessors Duration Estimates 1. A 2. B 1 6 3. C 2 7 4. D 2 5 5. E 3 3 6. F 3 9 7. G 4 2 8. H 5,6,7 6 9. 1 8 5 Page 11 Answer the following questions: 1. Construct a network diagram that represents the following information System development task list. Use the activity-in-box formats. [CO2-P012:C3:WP1] (9 Marks) 2. Calculate the ES, EF, LS and LF times for each activity. [CO2-PO12:C3] (9 Marks) 3. 3. Identify the critical path. [CO2-PO12:03] (2 Marks)
