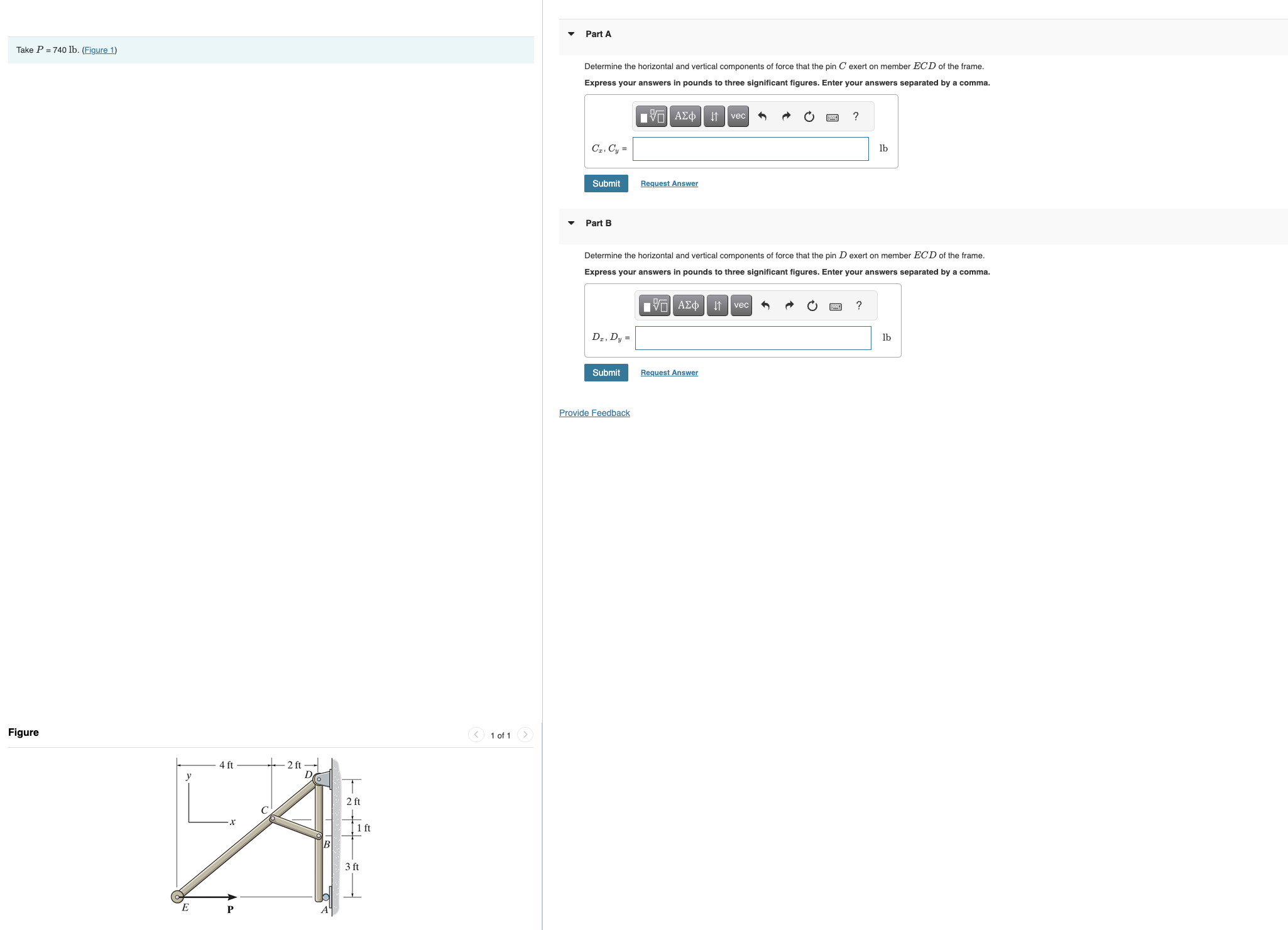

Question: Take P = 7 4 0 l b . ( Figure 1 ) Determine the horizontal and vertical components of force that the pin D

Take P=740lb.(Figure 1)
Determine the horizontal and vertical components of force that the pin D exert on member ECD of the frame. Express your answers in pounds to three significant figures. Enter your answers separated by a comma.
Dx,Dy=
lb
Take P = 7 4 0 l b . ( Figure 1 ) Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
