Question: Task 1 Basic Circuit Analysis ( constant current source ) Find the power dissipated by R 4 using the unique component values for R 1

Task 1 Basic Circuit Analysis (constant current source)

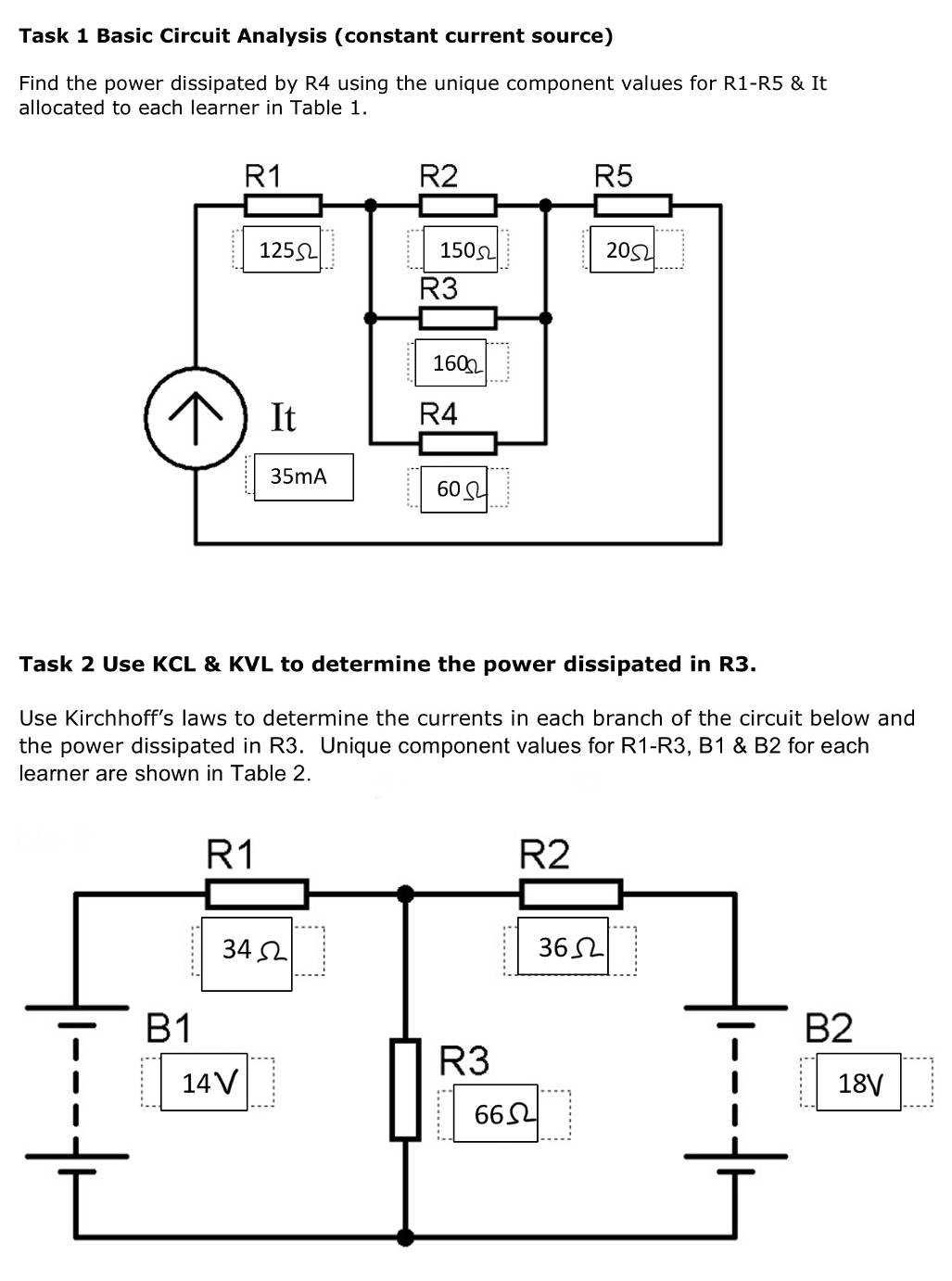

Find the power dissipated by R4 using the unique component values for R1-R5 & It allocated to each learner in Table 1.
Task 2 Use KCL & KVL to determine the power dissipated in R3.
Use Kirchhoff's laws to determine the currents in each branch of the circuit below and the power dissipated in R3. Unique component values for R1-R3, B1 & B2 for each learner are shown in Table 2.
Task 1 Basic Circuit Analysis ( constant current

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
