Question: Task Examine the following network diagram data for a small project and answer the questions that follow: Activity Initial Node 1 1 Finish Node 2

Task Examine the following network diagram data

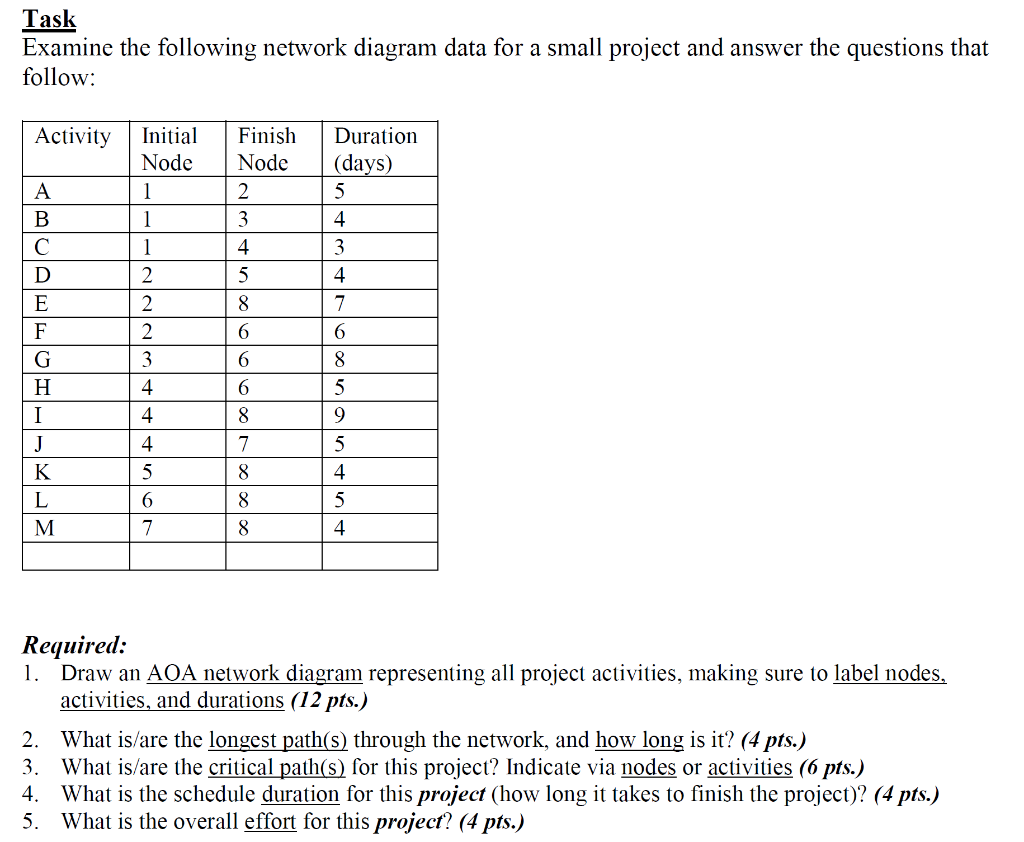

Task Examine the following network diagram data for a small project and answer the questions that follow: Activity Initial Node 1 1 Finish Node 2 3 Duration (days) 5 A B 4 3 1 2 2 4 5 8 4 7 6 6 2 3 6 6 D E F G H I J K L M 4 4 8 5 9 8 7 8 4 5 6 7 5 4 5 8 8 4 Required: 1. Draw an AOA network diagram representing all project activities, making sure to label nodes, activities, and durations (12 pts.) 2. What is/are the longest path(s) through the network, and how long is it? (4 pts.) 3. What is/are the critical path(s) for this project? Indicate via nodes or activities (6 pts.) 4. What is the schedule duration for this project (how long it takes to finish the project)? (4 pts.) 5. What is the overall effort for this project? (4 pts.)

Step by Step Solution

There are 3 Steps involved in it
