Question: The ACD frame is attached to joints A and D. This frame is supported by a cable threaded through ring B. The cable is fixed

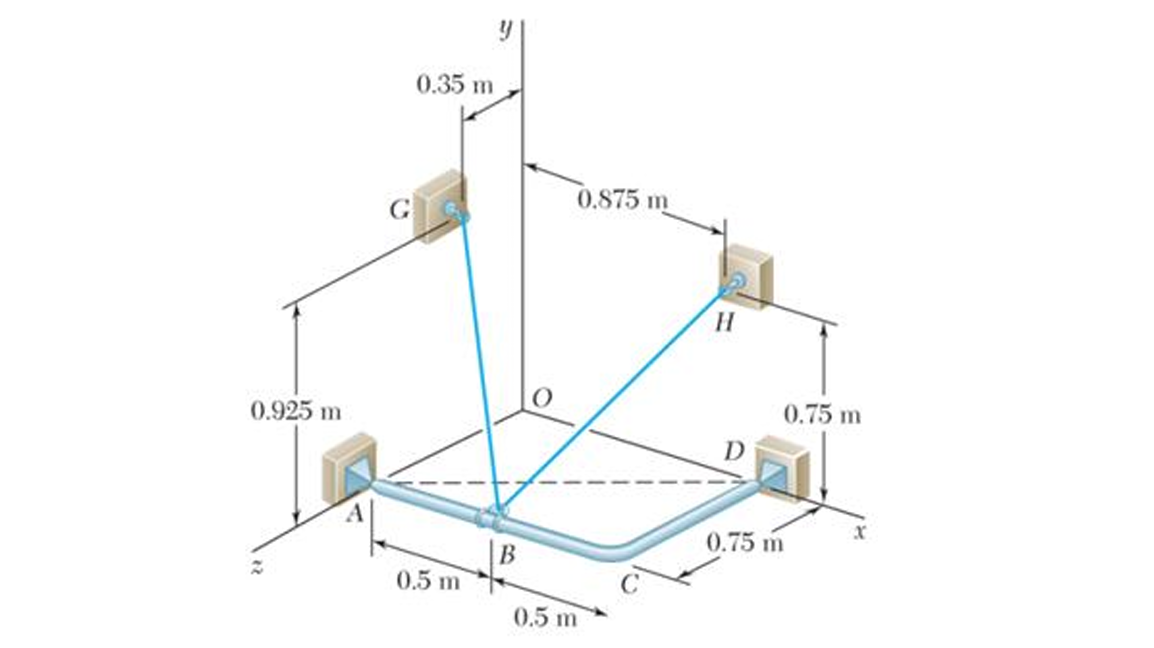

The ACD frame is attached to joints A and D. This frame is supported by a cable threaded through ring B. The cable is fixed to the wall by hooks at points G and H. The tension in the cable is 450 N. Determine the moment around the point D of the force exerted by the section BH of the cable on the frame.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

AutoSave Off HCA230_Project_Part_3 Search (Alt+Q) File Home Insert Page Layout Formulas Data Review View Help B21 fx ='Ratio List'!C6 A B Question 2: Calculate the provided 15 ratios for BOTH...

The frame ACD is hinged at A and D and is supported by a cable that passes through a ring at B and is attached to hooks at G and H . Knowing that the tension in the cable is 4 1 0 N , determine the...

Problem 0 3 . 0 5 8 - Moment of a force about an axis The frame ACD is hinged at A and D and is supported by a cable that passes through a ring at B and is attached to hooks at G and H . Knowing that...

How do i solve this Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A frame ACD is supported by ball-and-socket...

Solve Prob. 4.133, assuming that cable GBH is replaced by a cable GB attached at G and B. PROBLEM 4.133 The frame ACD is supported by ball and- socket joints at A and D and by a cable that passes...

Solve Prob. 4.144, assuming that the cable GBH is replaced by a cable GB attached at G and B. Problem 4.144: The frame ACD is supported by ball-and-socket joints at A and D and by a cable that passes...

I am having some trouble with these questions The assembly shown is welded to collarA that fits on the vertical pin shown. The pin can exert couples about the x and z axes but does not prevent motion...

A frame ACD is supported by ball - and - socket joints at A and D and by a cable that passes through a ring at B and is is attached to hooks G and H . Knowing that the frame supports at point C a...

Problem 3 The frame ACD is supported by ball - and - socket joints at A and D and by a cable that passes through a ring at B and attached to hooks at G and H . Knowing that the frame supports at...

The frame ACD is supported by ball-and-socket joints at A and D and by a cable that passes through a ring at B and is attached to hooks at G and H. Knowing that the frame supports at Point C a load...

4 . 1 3 8 The frame ACD is supported by ball - and - socket joints at A and D and by a cable that passes through a ring at B and is attached to hooks at G and H . Knowing that the frame supports at...
