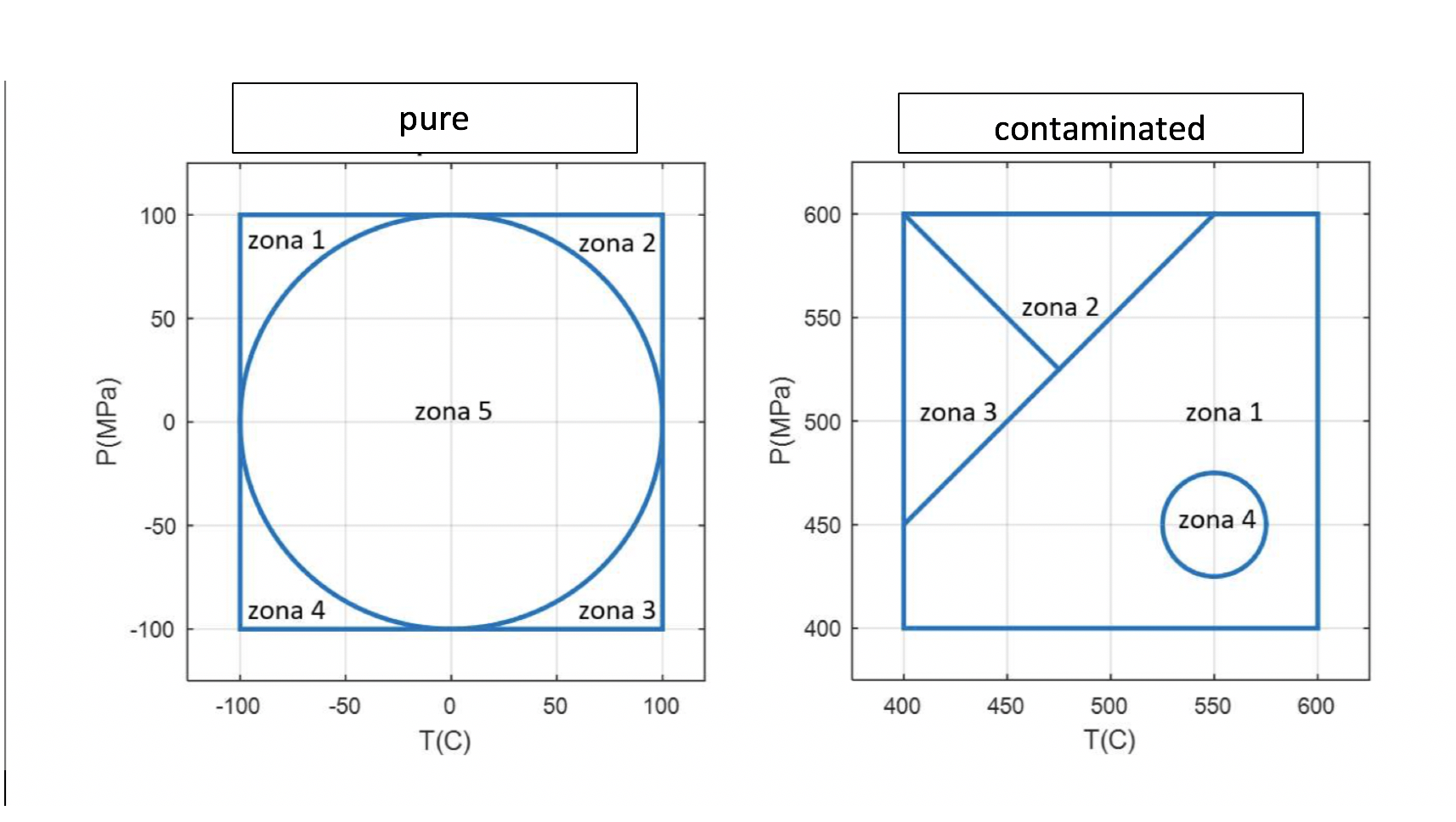

The area in which certain alien material is found depends on its state (pure or contaminated), pressure and temperature (see figures). (a) Design an algorithm to find in what area the material is. Present your algorithm in the form of a flowchart. (b) Implement your algorithm in a program composed of functions. Make sure the program has a valid output for any user input (including out of zone).

For cases on the edge of several zones, it must be specified in the output (for example: between zone 3 and 1). ** It is not necessary use functions in part (a), if it does, each function must have its own flowchart

pure contaminated zona 1 zona 2 zona 2 P(MPa) zona 5 P(MPa) 500 zona 3 zona 1 zona 4 zona 4 zona 3 -100 -50 50 100 400 400 450 500 550 600 0 T(C) T(C) pure contaminated zona 1 zona 2 zona 2 P(MPa) zona 5 P(MPa) 500 zona 3 zona 1 zona 4 zona 4 zona 3 -100 -50 50 100 400 400 450 500 550 600 0 T(C) T(C)
