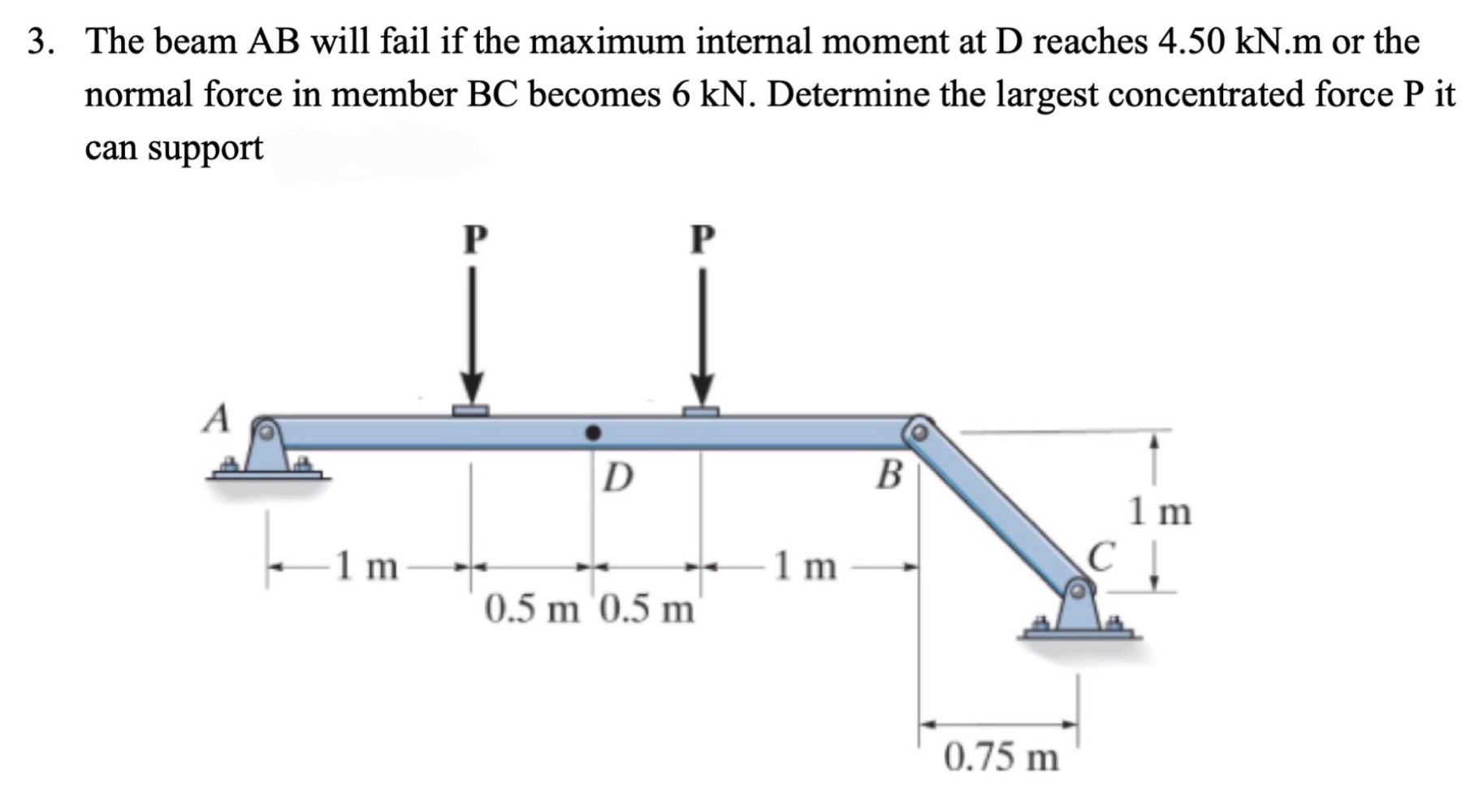

Question: The beam A B will fail if the maximum internal moment at D reaches 4 . 5 0 k N . m or the normal

The beam AB will fail if the maximum internal moment at D reaches 4.50kN.m or the normal force in member BC becomes 6kN. Determine the largest concentrated force P it can support
