Question: The beam has a rectangular cross section 4 in wide by 1 2 in deep and a span of 1 2 ft . It is

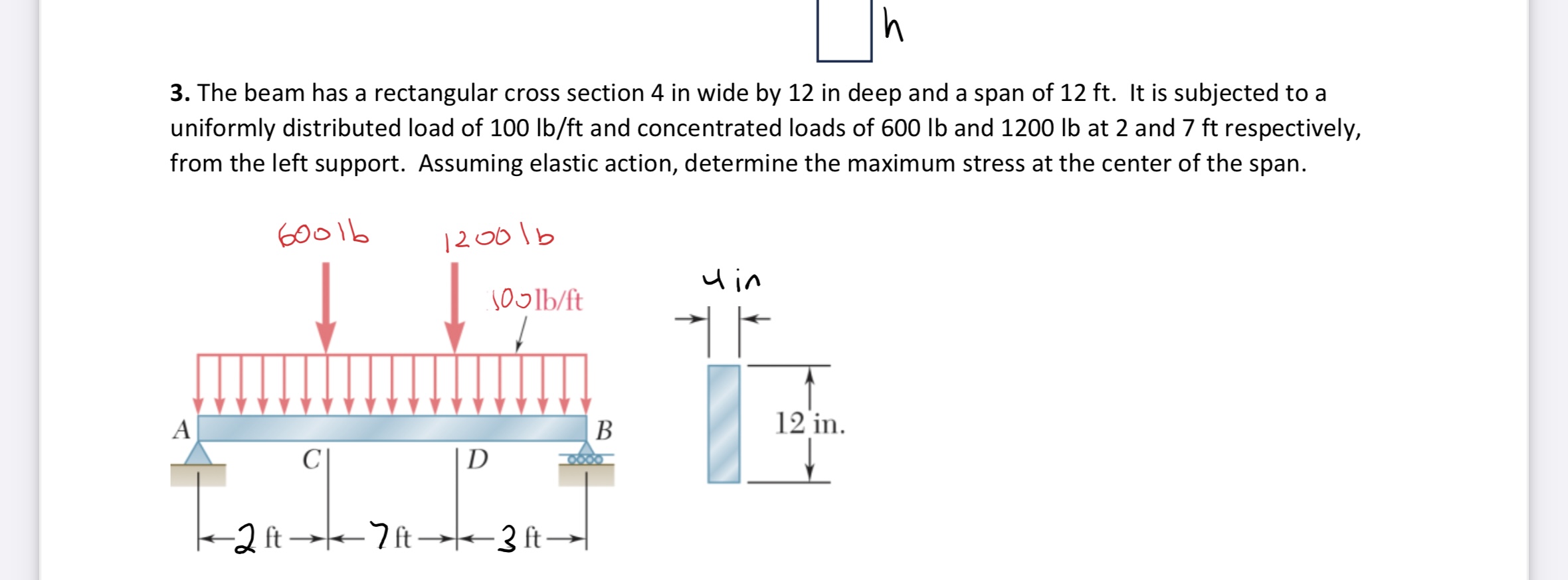

The beam has a rectangular cross section 4 in wide by 12 in deep and a span of 12 ft . It is subjected to a
uniformly distributed load of 100lbft and concentrated loads of 600 lb and 1200 lb at 2 and 7 ft respectively,
from the left support. Assuming elastic action, determine the maximum stress at the center of the span.
The beam has a rectangular cross section 4 in
