Question: The beam whose section is shown in Figure 3 is a seating element in a grandstand. It is reinforced with eight post - tensioning prestressing

The beam whose section is shown in Figure 3 is a seating element in a grandstand. It is reinforced with eight post-tensioning prestressing stands, as shown, each of area 120 mm2 and stressed to 70% of their yield strength. There are 20% losses between transfer and service. The characteristic concrete cylinder strength is, fck =50 N/mm2 and the yield strength of the strand is fyk =1820 N/mm2. Youngs modulus for the strand is 195,000 N/mm2.(a) Assuming that the prestressing strand has yielded and that 0.8x >75 mm, calculate the depth to the neutral axis, x.(b) Check both of these assumptions. (c) Calculate the ultimate moment capacity of the section.

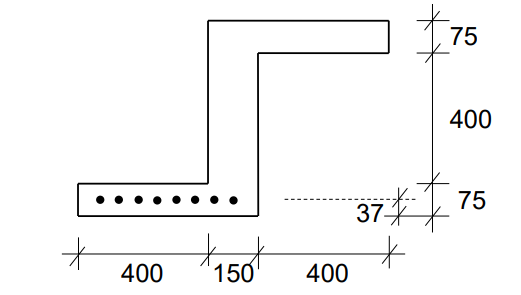

The beam whose section is shown in Figure 3 is a
