Question: The black lines represent a U - shaped rigid structure. The structure is attached to the wall by a frictionless pin joint at point A

The black lines represent a U-shaped rigid structure.
The structure is attached to the wall by a frictionless pin joint at point A.

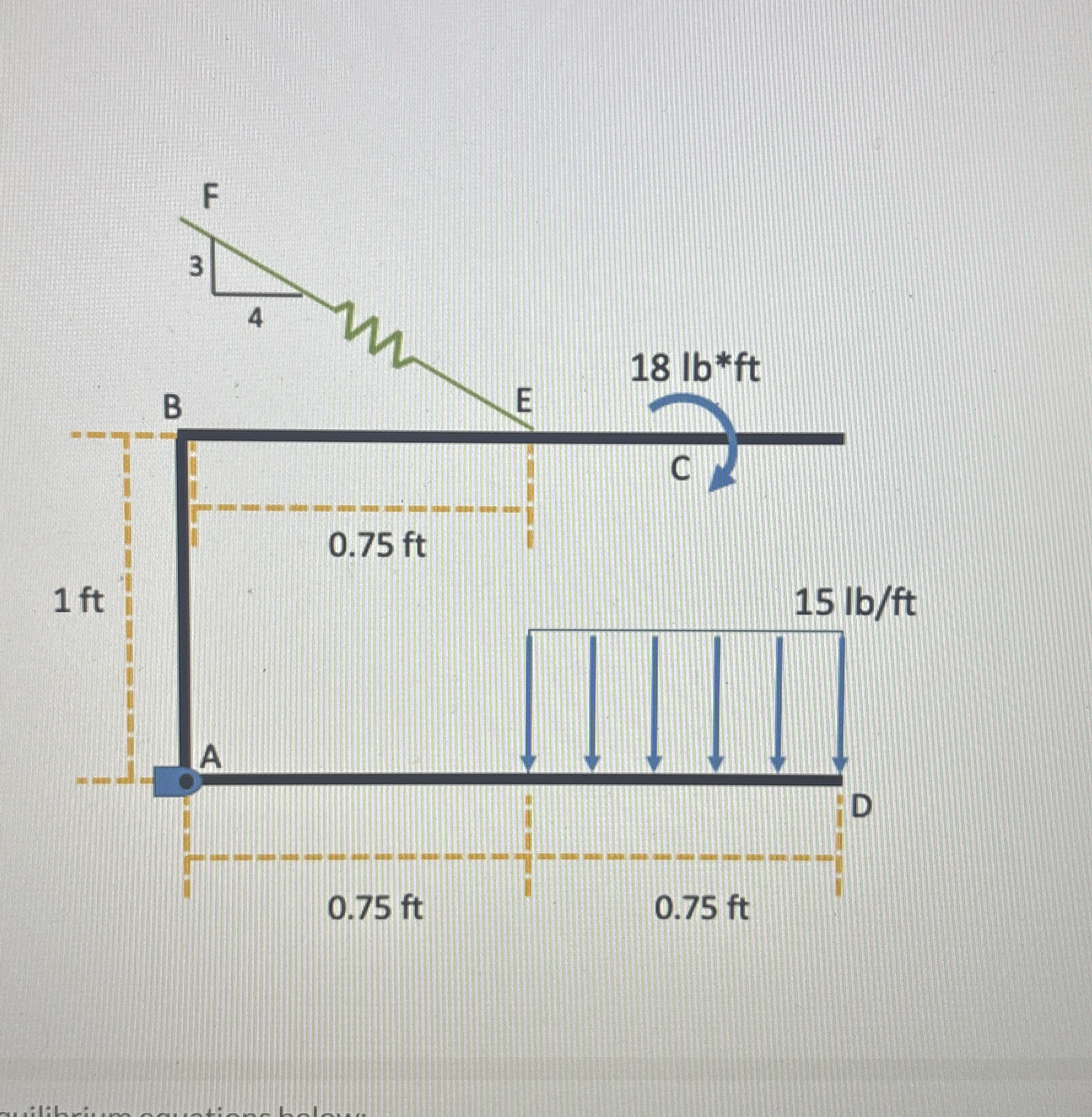

The structure is also supported by a spring element attached to points E and F, indicated in green.
Distributed loads are indicated by blue arrows.
Distances are given by yellow dashed lines.
Determine the reaction force at A in the x and y direction. Determine the tension in the spring
The black lines represent a U - shaped rigid

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
