Question: The circular dish, whose cross section is shown, has an outside diameter of 2 0 0 mm . A 2 0 - mm water jet,

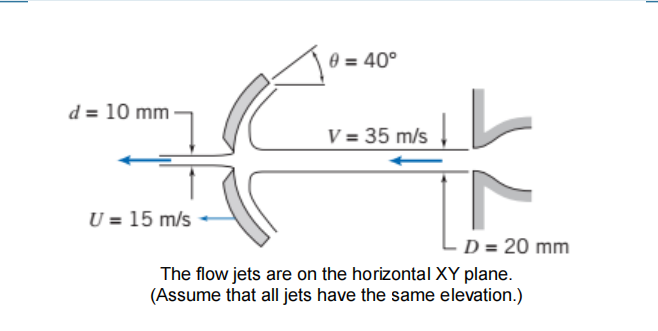

The circular dish, whose cross section is shown, has an outside diameter of 200mm. A 20-mm water jet, with a speed of 35 m/s strikes the dish concentrically. The dish moves to the left at a speed of 15 m/s. The dish has a hole at its center that allows a stream of water 10 mm in diameter to pass through without resistance. The remainder of the jet at a radius of 100 mm from the center of the dish is constant and the setup is on a horizontal XY plane. Using the basic flow equations in integral form for a control volume for the steady, incompressible, inviscid flow:
a. Find the velocity of the water jet at the hole and the thickness of the jet sheet at a radius of 100mm from the center of the dish.
b. Calculate the force required to maintain the dish motion.
The circular dish, whose cross section is shown,
